DESCRIPTION

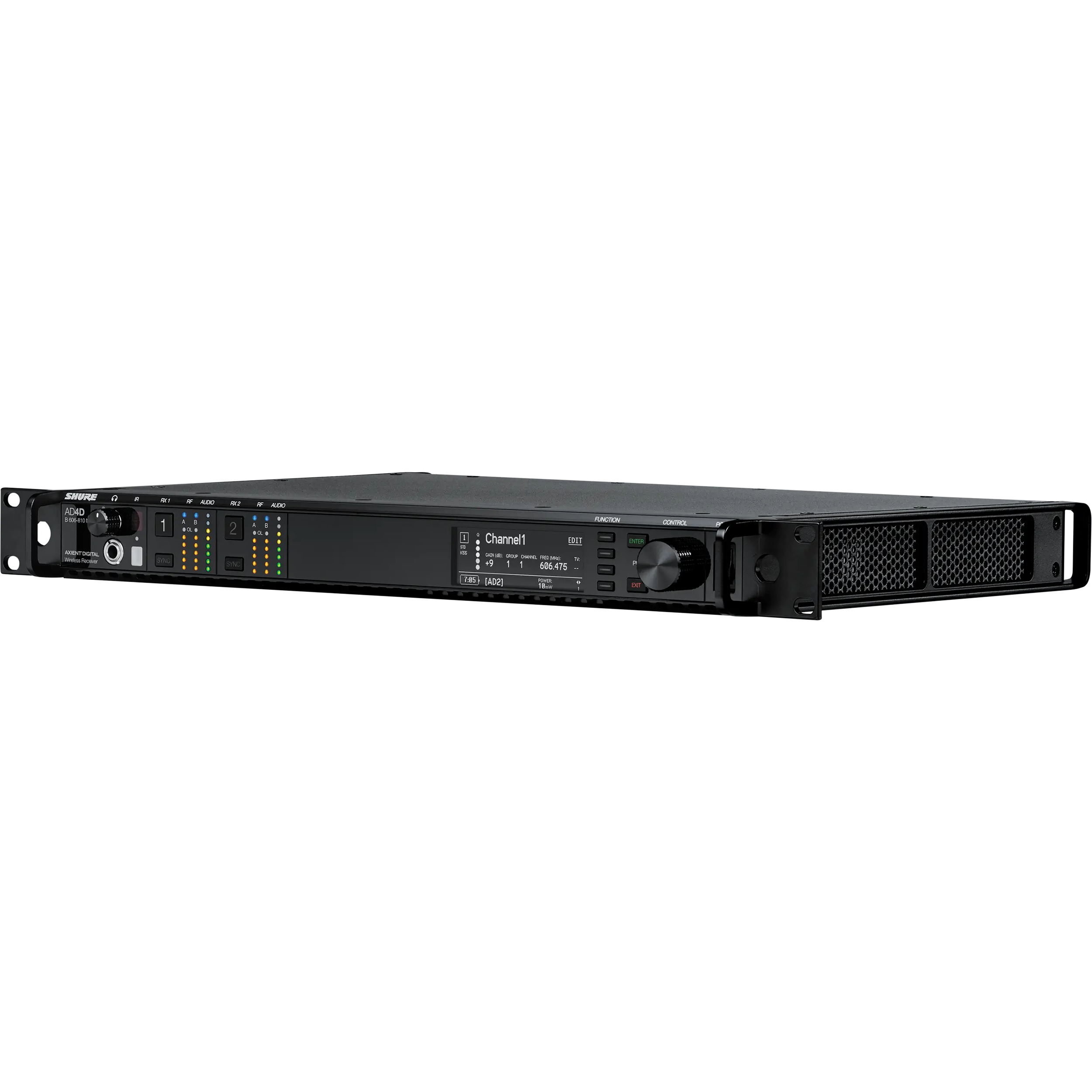

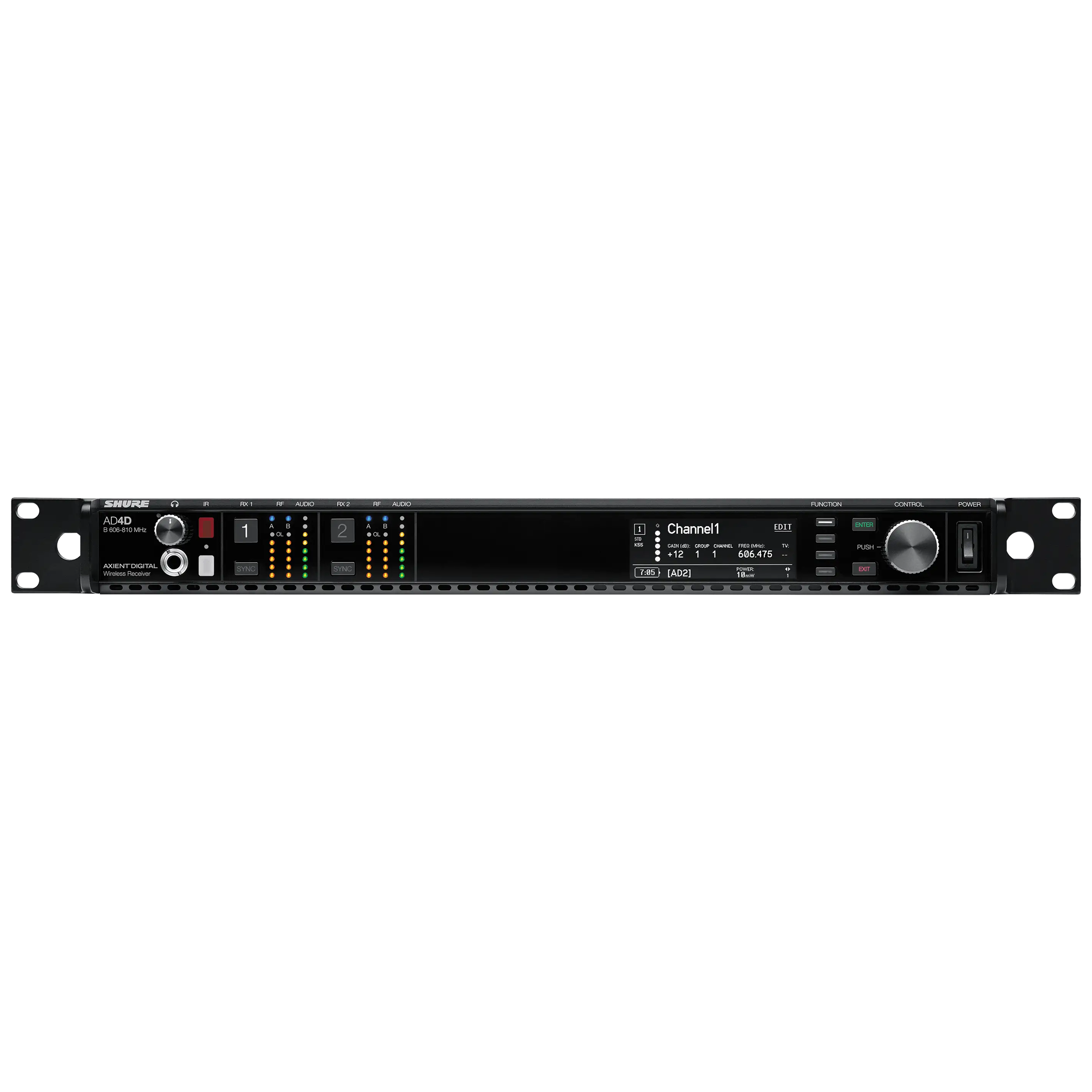

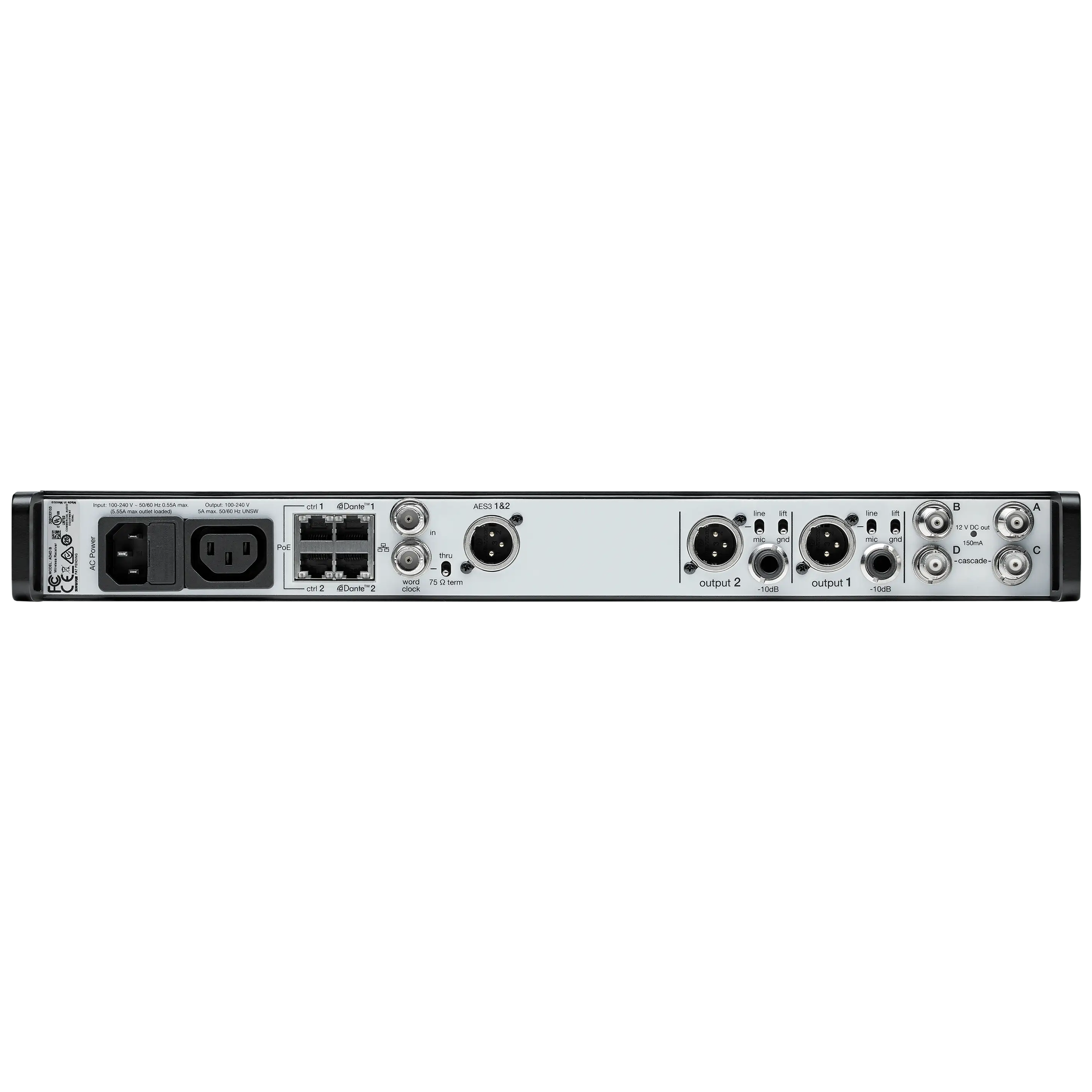

Introducing the Shure AD4D Two-Channel Digital Wireless Receiver, a pinnacle of cutting-edge audio technology that redefines the standards of wireless sound transmission. Designed for professional audio applications, this receiver boasts a dual-channel configuration, providing a seamless and interference-free connection for two independent audio sources. Its advanced digital wireless technology ensures crystal-clear, high-fidelity audio reproduction with exceptional signal stability, making it an ideal choice for live performances, broadcast studios, and conferences. The sleek and rugged design of the AD4D is complemented by intuitive controls, comprehensive status displays, and versatile connectivity options, ensuring a hassle-free and efficient user experience. Elevate your audio setup with the Shure AD4D, where innovation meets uncompromised performance in the realm of digital wireless receivers.

FEATURES
    • Wide tuning range up to 184 MHz
    • True digital diversity reception per channel for drop-out resistance
    • Networked control with Wireless Workbench software and ShurePlus Channels iOS app
    • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
    • Configurable Ethernet switch for redundant Dante digital output
    • AES3 output
    • Channel Quality meter displays RF signal-to-noise
    • Locking AC connectors
    • Optional DC module available to support redundant power
SPECIFICATIONS
    RF Carrier Frequency Range: 470–636 MHz
    Working Range: 330 ft (100 m)
    RF Tuning Step Size: 25 kHz, varies by region
    Image Rejection: >70 dB, typical
    RF Sensitivity: -98 dBm at 0.0001 BER
    Latency, Standard Mode: 2.08 ms
    Audio Frequency Response: 20 – 20 kHz (+/-1 dB) Note: Dependent on microphone type
    Total Harmonic Distortion: <0.01%
    System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
    Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
    Storage Temperature Range: -29°C (-20°F) to 65°C (149°F)
    Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
    Audio Output Configuration, 1/4": Transformer Coupled Balanced (Tip = Audio +, Ring = Audio -, Sleeve = Ground)
    Audio Output Impedance: 100 Ohms* Typical, XLR Line Out
    Full Scale Output, XLR LINE setting: +18 dBV, MIC setting: -12 dBV* 200k Ohm load
    Mic/Line Switch: 30 dB pad
    Phantom Power Protection: Yes
    Power Requirements: 100 to 240 V AC, 50-60 Hz, 0.55 A max
    Shure RF Carrier Band: G56
    Audio Output Configuration, XLR: Transformer Coupled Balanced: (1=ground, 2=audio +, 3=audio -)
    Full Scale Output, 1/4": +8 dBV* 200k Ohm load
    Latency, High Density Mode 2.9 ms
    Dimensions, L x W x H: 19" x 13.1" x 1.7" (483 mm x 333 mm x 44 mm)
    Weight: 10.1 lbs (4.6kg), without antennas
    Housing: Steel; Extruded aluminum
    Thermal Dissipation: Maximum: 23 W (78 BTU/hr), Idle: 15 W (52 BTU/hr)
    Network Interface: 10/100 Mbps, 1 Gbps, Dante Digital Audio
    Network Addressing Capability: DHCP or Manual IP address
    Maximum Ethernet Cable Length: 328 ft (100 m)
    Cascade Output Connector Type: BNC
    Cascade Output Configuration: Unbalanced, passive
    Cascade Output Impedance: 50 Ohms
    Cascade Insertion Loss: 0 dB, typical
    RF Input Spurious Rejection: >80 dB, typical
    RF Input Connector Type: BNC
    RF Input Impedance: 50 Ohms
    RF Input Bias Voltage: 12-13.5 V DC, 150 mA maximum, per antenna, switchable on/off
    Audio Dynamic Range (XLR Analog Output): 120 dB (A-weighted); 117 (unweighted) *System Gain @ +10
    Audio Dynamic Range (Dante Digital Output): 130 dB (A-weighted); 126 (unweighted) * System Gain @ +10
CONTENTS
    (1) Shure AD4D Two-channel Digital Wireless Receiver
    (1) Hardware kit
    (1) AC power cable, VLock
    (1) AC power Jumper cable
    (1) Operator's Instructions
