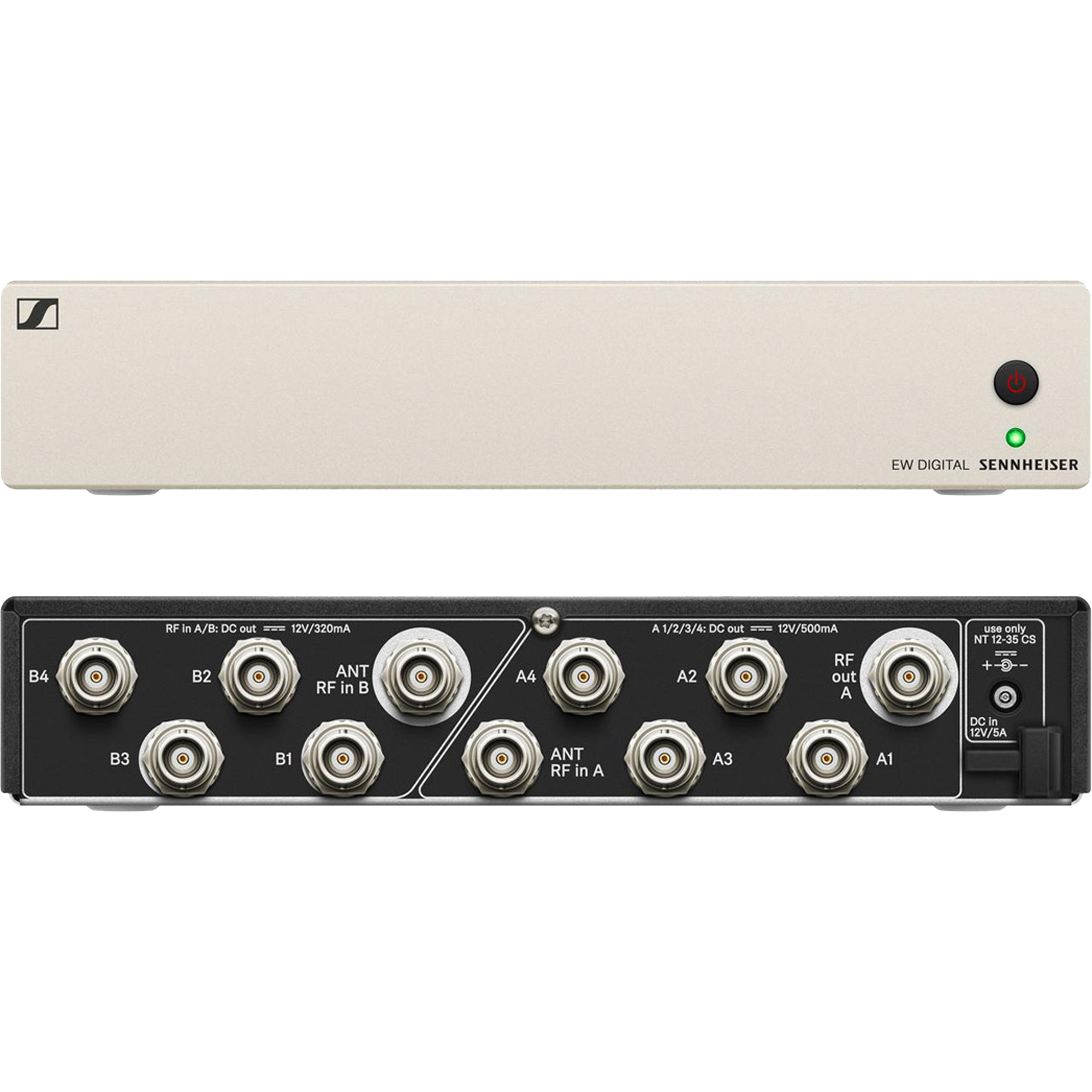

Active Antenna Splitter for use with Evolution Wireless Digital systems.

FEATURES

• Digital wireless eliminates noise, interference and static bursts

• UHF transmission greatly enhances range, reliability and scalability

• Mobile App streamlines setup and operation and eliminates complicated menus

• Automated setup creates reliable connections with minimal time and effort

• Up to 2,240 selectable frequencies

• 56 MHz Bandwidth will allow for up to 90 channels

SPECIFICATIONS

Frequency range: EW-D ASA (Q-R-S): 470 – 694 MHz

Antenna splitter: 2 x 1:4 or 1 x 1:8, active

Gain: in A – out A: 0 ± 1 dB, in A – out A1 ... A4: 0 ± 1 dB and in B – out B1 ... B4: 0 ± 1 dB

IIP3: > 25 dBm

Impedance: 50 Ω

Reflection loss: 10 dB (all RF outputs)

Operating voltage: DC +12 V from NT 12-35 CS power supply unit

Current consumption: 210 mA

Total current consumption: max. 3 A (with 4 EW-D EM and connected EW-D AB)

Supply for antenna boosters at ANT RF in A and ANT RF in B: DC 12 V, 320 mA

Supply for receivers at A1 to A4: DC 12 V, Typically 350 mA, max. 500 mA

Dimensions: Approx. 212 x 168 x 43 mm or (8.35" x 6.61" x 1.69")

Weight: Approx. 1100 g (2.43 lbs)

Operating temperature range: -10 °C - +55 °C or (14 °F - 131 °F)

Storage temperature range: -20 °C - +70 °C or (-4 °F - 158 °F)

Relative humidity: 5 - 95 % (non-condensing)

CONTENTS

(1) Sennheiser EW-D ASA Active Antenna Splitter (dual 1:4)
(1) NT 12-35 CS Power Supply for EW-D ASA
(8) BNC Antenna Interconnect Cables
