Portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. All-in-one hardware design eliminates computer setup hassles and software based crashes, while the HDMI workflow and loaded professional toolset streamline production. In addition to the switcher, the livestreaming bundle includes a Roland UVC-01 “Plug and Play” Encoder for efficient and simple streaming application.
FEATURES
-
Roland V-8HD Video Switcher:
• All HDMI workflow
• Built-in multi-viewer preview monitor
• Execute smooth transitions using the T-bar fader
• Powerful live production automation with sequencing, macros, and preset memories
• Eight-slot still store function supports screen capture and import of BMP, JPEG and transparent PNG images to internal non-volatile memory
• Ultra-mobile, lightweight, and efficient
• Five-layer effects and keying engine
• Aux output for a different video feed
• Technology-assisted automatic video switching
• Newly supported 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz of output formats
• 18-channel digital audio mixer with a wide range of effects, including sync delay on each channel
• Remote start and stop of Atomos recorders
• Remote control software available for iPad, macOS, and Windows
Roland UVC-01 “Plug and Play” Encoder:
• High-quality HDMI to USB 3.0 video encoder
• Plug-and-play USB webcam operation for Mac and Windows computers
• Seamlessly works with all Roland V-series switchers with an HDMI output
• Also works with most HDMI-equipped cameras and camcorders
• Uncompressed 1080p HD at 60 FPS for engaging livestreams
• Dedicated analog audio line input for live music versatility
• Powered via USB
SPECIFICATIONS
-
Roland V-8HD Video Switcher:
Video:
Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Number of video channels: 8 channels
Input formats:
INPUT 1--6: 720/59.94p *1, *3; 720/50p *1, *4; 1080/59.94i, 1080/59.94p, 1080/60p *2, *3; 1080/50i, 1080/50p *2, *4; 1080/29.97p, 1080/30p *2, *5; 1080/25p *2, *6; 1080/23.98p, 1080/24p *2; * The input interlaced video signal is converted to progressive video signal by internal processing.; *1 SYSTEM FORMAT = 720p; *2 SYSTEM FORMAT = 1080i or 1080p; *3 FRAME RATE = 59.94 Hz, 60 Hz; *4 FRAME RATE = 50 Hz; *5 FRAME RATE = 29.97Hz, 30Hz, 59.94Hz, 60Hz; *6 FRAME RATE = 25Hz, 50Hz
INPUT 7--8: 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1; 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2; 1080/23.98p, 1080/24p; VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.; * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.; * 1920 x 1200/60 Hz: Reduced blanking; * The input interlaced video signal is converted to progressive video signal by internal processing.; * The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.; * INPUT 8 support Roland FILL+KEY signal; *1 FRAME RATE = 59.94 Hz, 60 Hz; *2 FRAME RATE = 50 Hz
Output formats:
OUTPUT 1--2: 720/59.94p *1, *4; 720/60p *1, *5; 720/50p *1, *8; 1080/59.94i *2, *4; 1080/60i *2, *5; 1080/50i *2, *8; 1080/59.94p *3, *4; 1080/60p *3, *5; 1080/29.97p *3, *6; 1080/30p *3, *7; 1080/50p *3, *8; 1080/25p *3, *9; 1080/23.98p *3, *10; 1080/24p *3, *11; *1 SYSTEM FORMAT = 720p; *2 SYSTEM FORMAT = 1080i; *3 SYSTEM FORMAT = 1080p; *4 FRAME RATE = 59.94 Hz; *5 FRAME RATE = 60 Hz; *6 FRAME RATE = 29.97 Hz; *7 FRAME RATE = 30 Hz; *8 FRAME RATE = 50 Hz; *9 FRAME RATE = 25 Hz; *10 FRAME RATE = 23.98 Hz; *11 FRAME RATE = 24 Hz
OUTPUT 3: 1080/59.94p *1; 1080/60p *2; 1080/29.97p *3; 1080/30p *4; 1080/50p *5; 1080/25p *6; 1080/23.98p *7; 1080/24p *8; *1 FRAME RATE = 59.94 Hz; *2 FRAME RATE = 60 Hz; *3 FRAME RATE = 29.97 Hz; *4 FRAME RATE = 30 Hz; *5 FRAME RATE = 50 Hz; *6 FRAME RATE = 25 Hz; *7 FRAME RATE = 23.98 Hz; *8 FRAME RATE = 24 Hz
Still Image: Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.; PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color; JPEG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 8 files in the internal memory.
* It can be exported in the USB memory.
* PNG alpha channel supported (Exclusive with alpha bus or AUX bus)
Video Effects:
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key *1 , External Key *1 , Roland FILL+KEY Mode)
Others: Multi-View, Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output *1 Exclusive with alpha bus or AUX bus
Audio:
Audio Processing: Sample rate: 24 bits, 48 kHz
Number of audio channels: 18 channels
Audio formats: INPUT: Linear PCM, 24 bits, 48 kHz, 2 ch; OUTPUT: Linear PCM, 24 bits, 48 kHz, 2 ch
Audio Effects: Channel Effects: High pass filter, Noise gate, Compressor, 3-Band equalizer, Delay
Master Effects: Reverb, 3-Band equalizer, Multi-band compressor, Limiter; Others: Output fade, Test tone output
Common Section:
Other Functions: Preset Memory (24 types), Macro Control (100 types), Sequencer Control (1,000 steps), Panel lock function, EDID Emulator, Auto Switching, Auto Input Detect, External Rec Control
Connectors:
Video Input Connectors: INPUT 1--6: HDMI type A x 6, * HDCP Supported; INPUT 7--8: HDMI type A x 2, * HDCP Supported; * Multi-format Supported
Video Output Connectors: OUTPUT 1--3: HDMI type A x 3, * HDCP Supported
Audio Input Connectors: Analog: AUDIO IN: RCA phono type; Digital: INPUT 1--8: HDMI type A x 8
Audio Output Connectors: Analog: AUDIO OUT: RCA phono type; PHONES: Stereo miniature type; Digital: OUTPUT 1--3: HDMI type A x 3
Other Connectors:
USB MEMORY: USB A type (for USB flash drive, for remote control from USB Numeric Keypad)
REMOTE: USB B Type (for remote control from PC and iPad, Graphics Presenter)
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
Audio Input/Output Characteristics:
Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu)
Input Impedance: AUDIO IN: 38 k ohms
Output Level: AUDIO OUT: -10 dBu (Maximum: +8 dBu); PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance: AUDIO OUT: 1 k ohm; PHONES: 10 ohms
Others:
Display: 4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply: AC Adaptor
Current Draw: 3.3 A
Power Consumption: 39.6 W
Operation Temperature: +0 to +40 degrees Celsius; +32 to +104 degrees Fahrenheit
Dimensions: 317 (W) x 193 (D) x 70 (H) mm or 12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inches
Weight (excluding AC adaptor): 2.0 kg or 4 lbs 7 oz

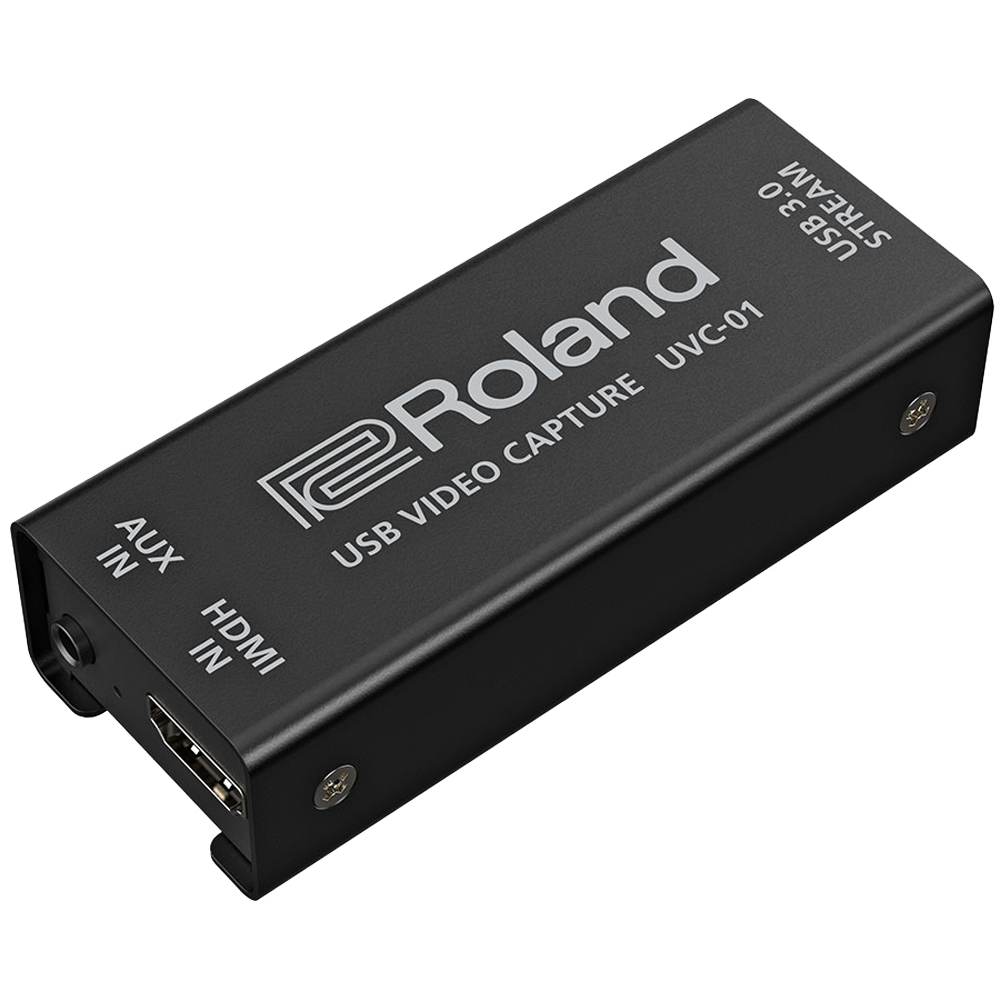

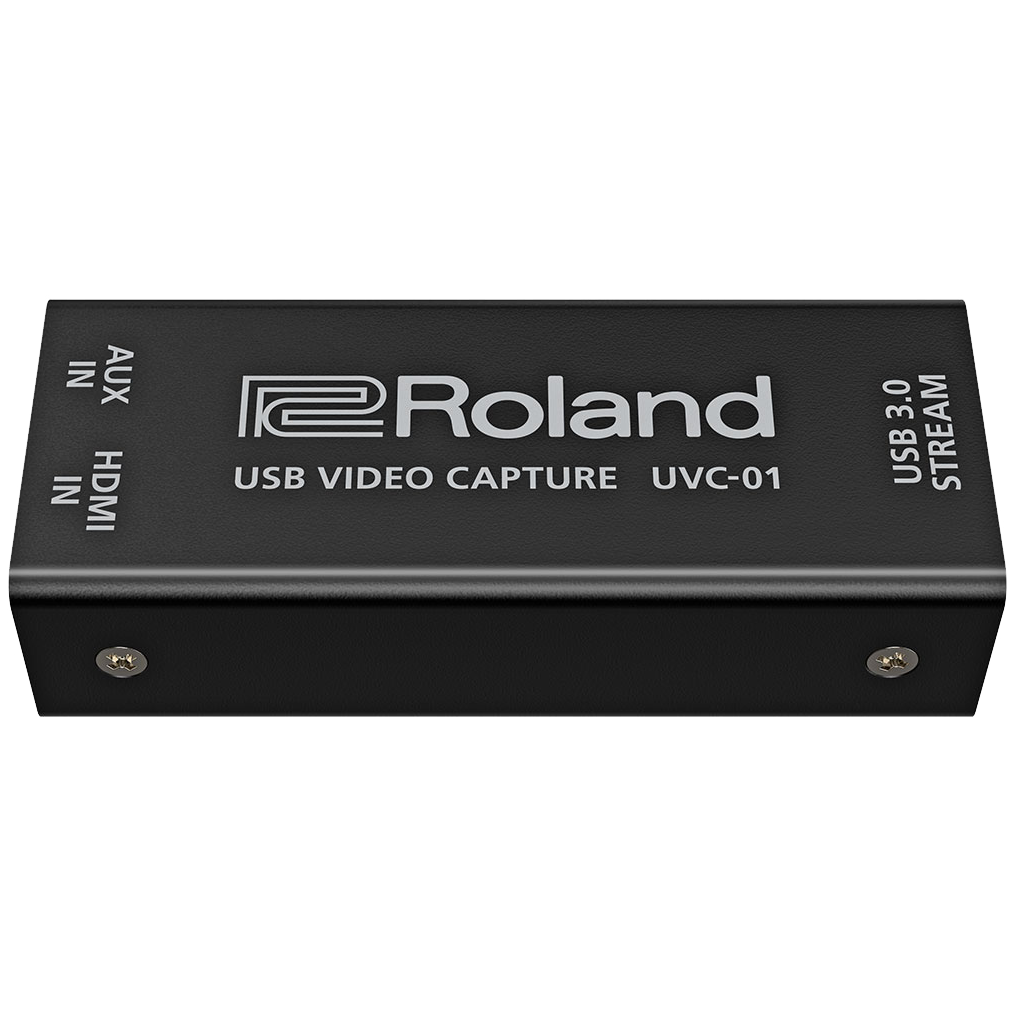

Roland UVC-01 “Plug and Play” Encoder:
Video:
Input Connectors: HDMI IN connector: HDMI type A * Multi-format Supported * HDCP Not Supported
Output Connectors: USB STREAM port: USB 3.0 B type
Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
USB Video Output Format: YUY2 (Uncompressed)
USB Video Output Resolution: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 * The maximum frame rate is 60 fps.
Audio:
Audio formats:
HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo

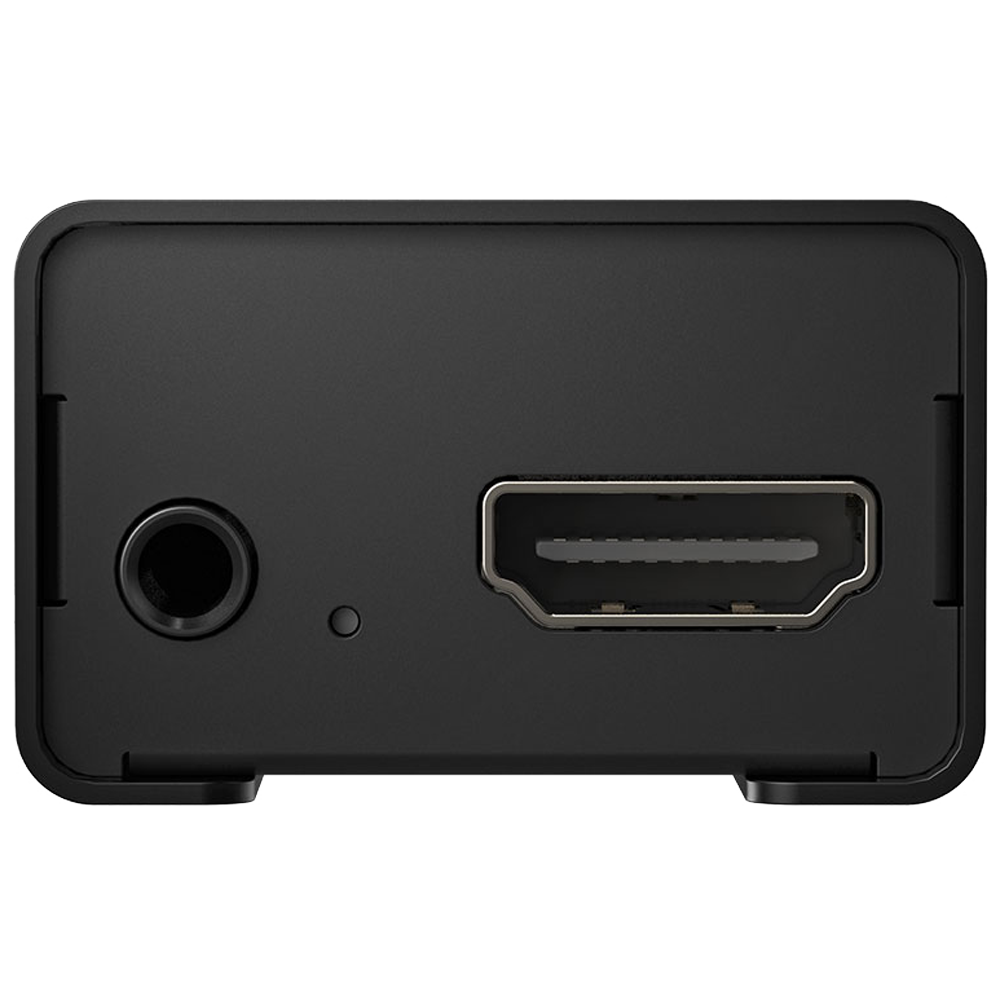

Input Connectors:
HDMI IN connector: HDMI type A
AUX IN jack: Stereo miniature phone type
Output Connectors: USB STREAM port: USB 3.0 B type
Nominal Input Level: AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
Input Impedance: AUX IN jack: 10 k ohms
Others:
Power Supply: Supplied from the computer via USB
Current Draw: 500 mA
Operation Temperature: +0 to +40 degrees Celsius or +32 to +104 degrees Fahrenheit
Dimensions: 90 (W) x 37 (D) x 23 (H) mm or 3-9/16 (W) x 1-1/2 (D) x 15/16 (H) inches
Weight (excluding AC adaptor): 96 g or 4 oz
CONTENTS
-
(1) Roland V-8HD Video Switcher
(1) Roland UVC-01 “Plug and Play” Encoder
(1) Startup Guide
(1) Leaflet "USING THE UNIT SAFELY"
(1) AC Adaptor
(1) USB 3.0 Cable
