Product SKU
    Product SKU #22362
$149.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Mint Condition
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTIONS

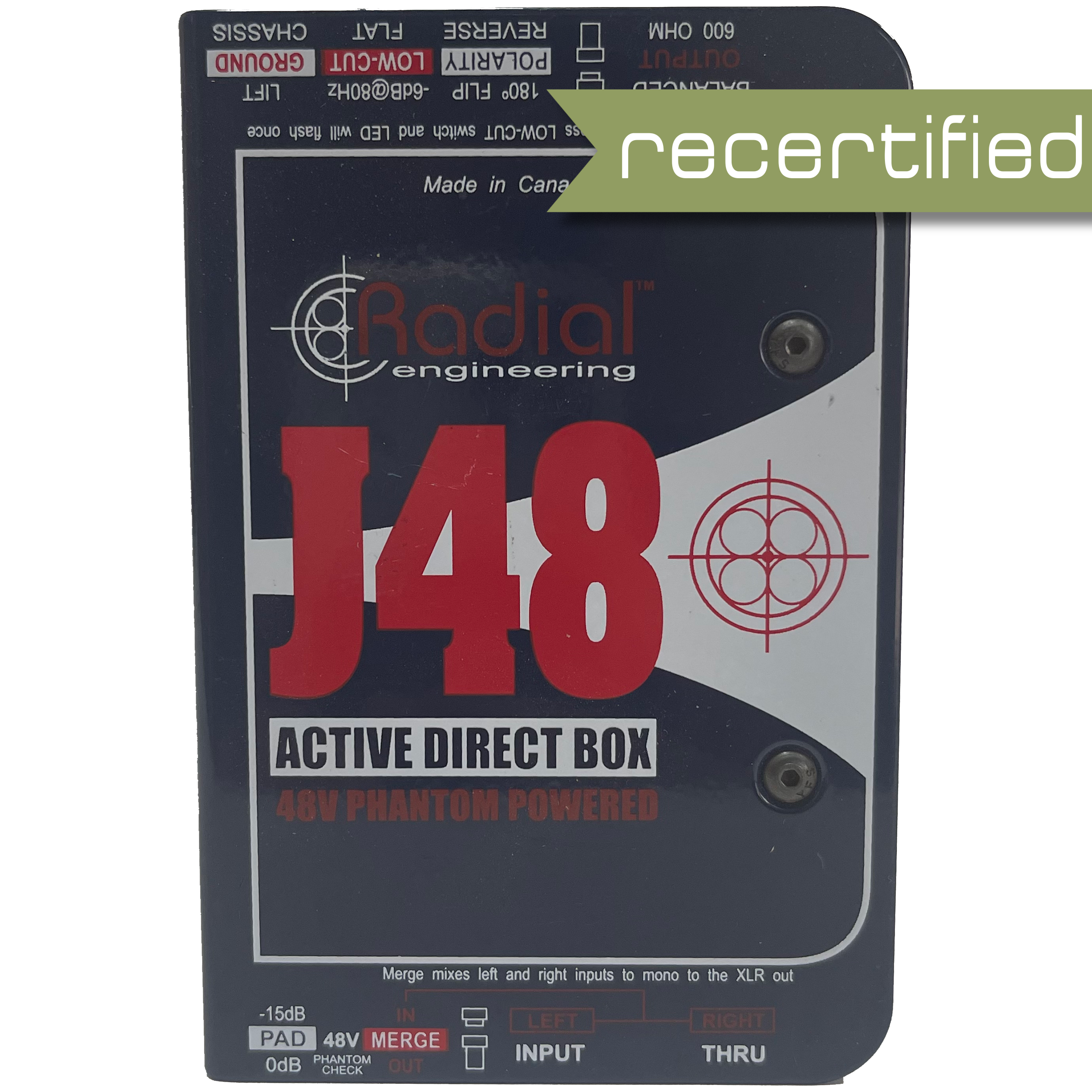

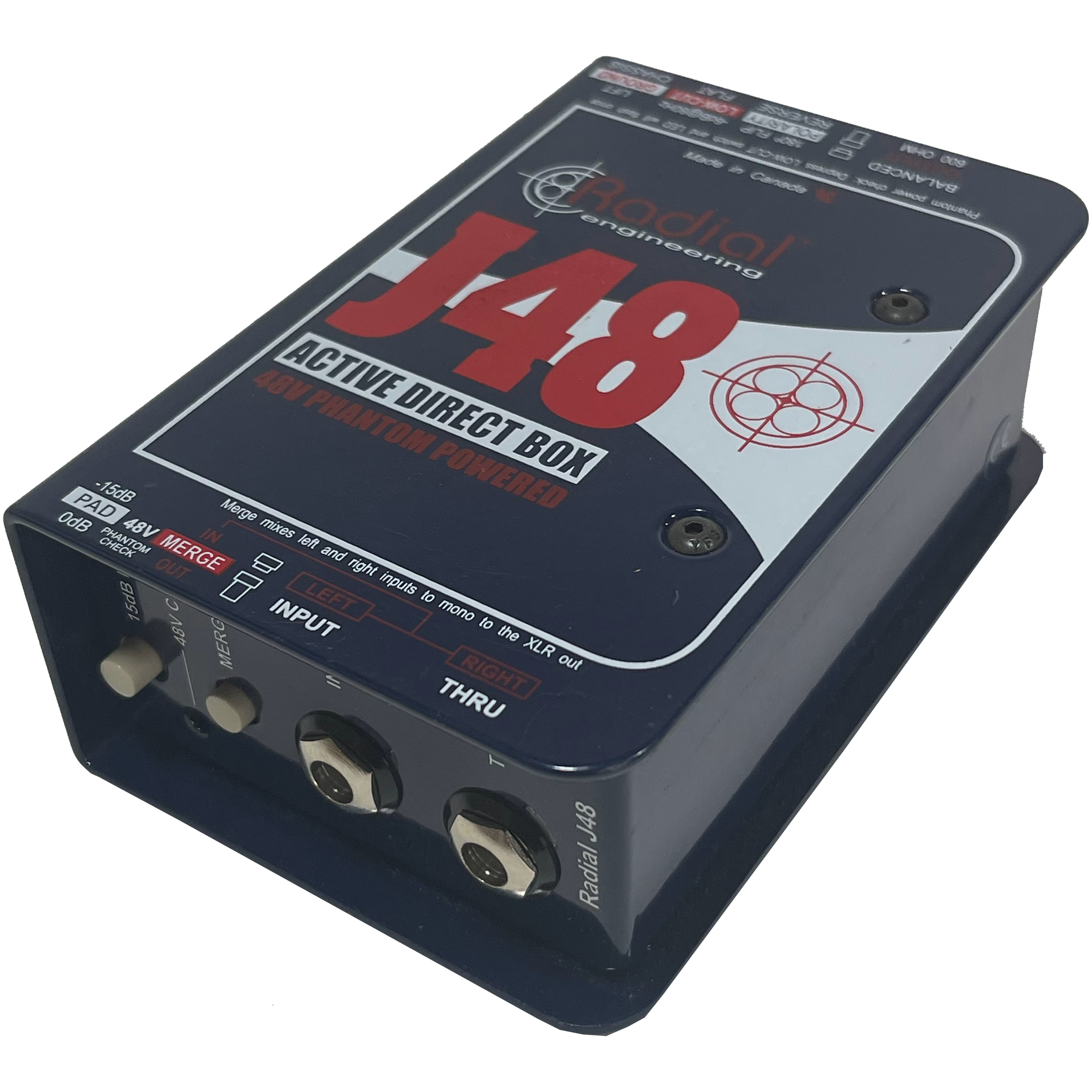

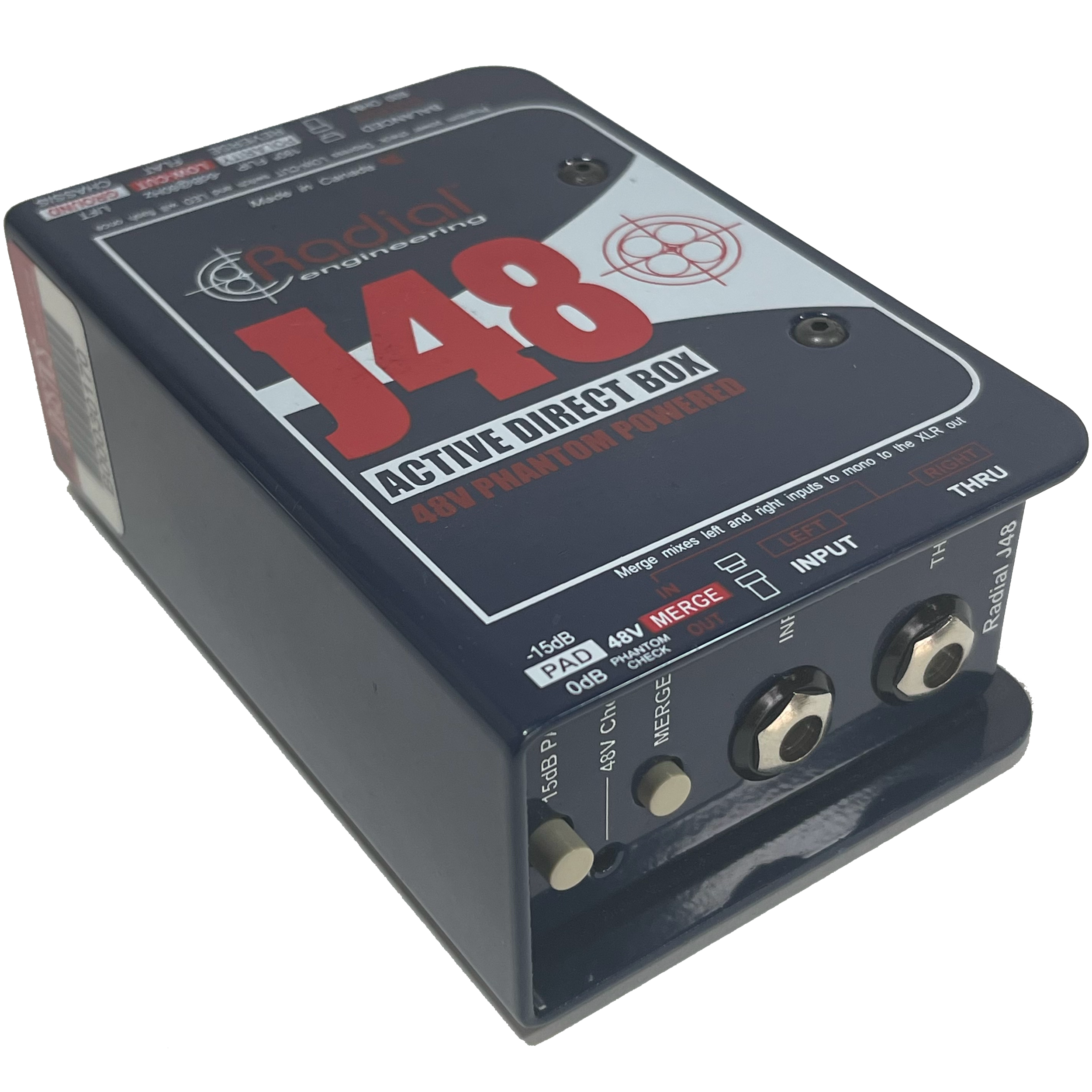

The Radial J48 Premium Active DI is a high-performance direct box designed for professional audio applications. It features 48V phantom power operation, making it ideal for stage and studio environments where maximum headroom and low distortion are essential. The J48 is renowned for its pristine signal transfer, retaining the natural tone of instruments while preventing noise or distortion, thanks to its innovative internal switching power supply. With a frequency response extending from 20Hz to 40kHz, it handles a wide range of signals with clarity, including high-output active basses and acoustic guitars. Its rugged, road-ready construction ensures durability, and features like a -15dB pad, ground lift, and polarity reverse offer versatility in demanding live or recording setups.
FEATURES
    • Ultra low distortion of all types
    • Exceptional headroom & dynamic range
    • Retains instrument's natural sound
    • The perfect DI for bass & acoustic guitar
    • Powered by 48V phantom
SPECIFICATIONS
    Audio Circuit Type: Proprietary analog circuit with low-noise op-amp
    Frequency Response: 20Hz ~ 20kHz
    Dynamic Range: 109dB
    Total Harmonic Distortion: 0.002% @ -5dBu
    Intermodulation Distortion: 0.003% @ -3dBu
    Phase Deviation: +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
    Input Impedance (O): 220k? - ¼" input
    Output Impedance: 200? - XLR output
    Equivalent Input Noise: -103dBu
    Noise Floor: -99dB below 0dBu
    Maximum Input: +10dBu
    Features: Input pad, Mono Sum, 180° polarity reverse, Ground lift, HPF
    Input Connectors: 1/4"
    Output Connectors: Balanced XLR, 1/4" Thru
    Construction: 14 gauge steel chassis and outer shell
    Product Dimension (L x W x D): 3.3" x 5" x 2"
    Product Weight: 1.55 lb
    Power: 48V phantom - proprietary digital switching
    Conditions: For use in dry locations only between 5°C and 40°C
    Warranty: Radial 3-year, transferable
CONTENTS
    (1) Radial Engineering J48 Phantom Powered Active Direct Box
