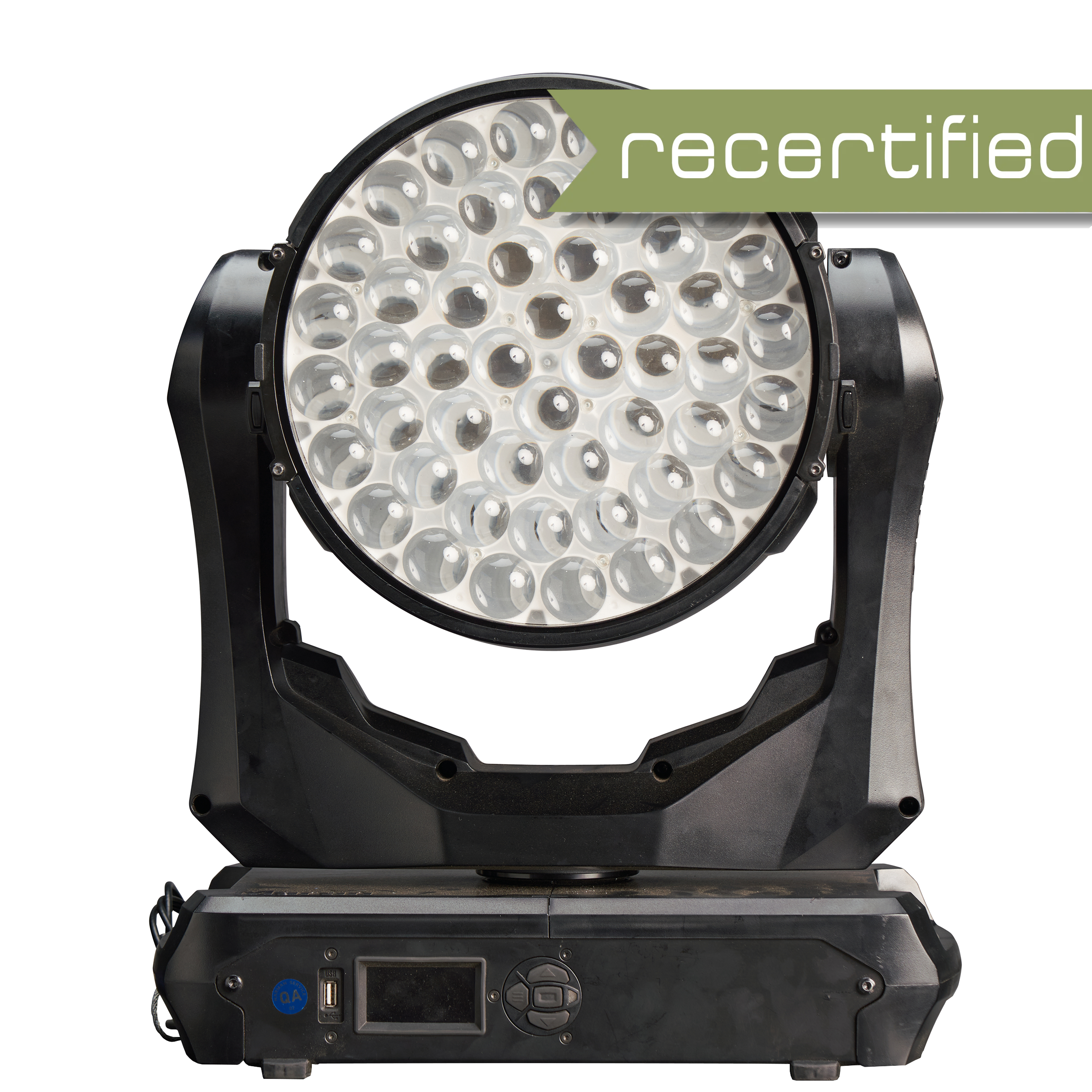

Martin MAC Quantum Wash
29%, only 0 left
Martin MAC Quantum Wash
Product SKU
    22190

Martin MAC Quantum Wash

$1,899.99

SEE PRODUCT IN STORE

PICK UP TODAY

recertifiedBYFP (1).png__PID:3dfb27ce-5af4-41e0-8bcb-81e313e4a56f
  • Used and Well Maintained
  • Performs Like New
  • 90 Day Guarantee

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The Martin MAC Quantum Wash is a high-output LED wash light designed for demanding stage and event applications. Combining 750 W of RGBW LED power with Martin’s highly efficient optical system, it delivers bright, uniform wash fields and tight beams through a 1:5 motorized zoom.

Its Colorganics™ color mixing system provides a broad color palette with rich, saturated colors and high-quality whites. The fixture also features an Aura Effect™, a rotating front lens for Beam Twister effects, light and color morphing, color spin, and independently controlled color ring and beam zones for dynamic looks.

With a 540° pan and 270° tilt, high-speed movement, variable color temperature from 2,000 to 10,000 K, and DMX/RDM control, the MAC Quantum Wash combines versatile movement, powerful output, and extensive effects in a compact fixture weighing 21 kg.

FEATURES
    • Bright and powerful RGBW LED wash light for demanding applications
    • Quick 1:5 zoom for tight beams and even washes
    • Unique and expressive Colorganics™ system
    • Highly efficient optical system
    • Unique Aura backlight and Beam Twister effects
    • Very low weight and compact design
    • Super high-speed movements and effects
SPECIFICATIONS
    • Color Mixing: RGBW
    • Beam Effects: Beam Twister, light and color morphing, color spin
    • Color Wheel Effect: 36 solid colors plus white, variable-speed color wheel rotation effect and random color
    • Color Ring Effects: 36 split ring colors with variable-speed color wheel rotation effects
    • Shutter Effect: Electronic, with variable-speed regular and random strobe
    • Pre-programmed Effects: Range of synchronized and independent color, intensity, Beam Twister and zone effects
    • Electronic Dimming: Four dimming curve options
    • Color Temperature Control: Variable, 2000–10,000 K
    • Zoom: Motorized
    • Pan: 540°
    • Tilt: 270°
    • Pan and Tilt Speed: Adjustable via onboard control panel and DMX
    • Control System: DMX
    • Control Options: Independent control of color ring and beam zones
    • Macro Programs Selectable via DMX: Range of synchronized and independent color, intensity, beam twister, and zone effects
    • RDM: Implemented
    • Control Resolution: 8-bit, with 16-bit control of pan, tilt, dimming, and lens rotation
    • DMX Channels: 33/17
    • Setting and Addressing: Control panel with backlit graphic display
    • DMX Compliance: USITT DMX512-A
    • Mounting Points: 2 pairs of quarter-turn locks
    • Location: Indoor use only; must be fastened to a surface or structure
    • Orientation: Any
    • Minimum Distance to Combustible Materials: 0.2 m
    • Minimum Distance to Illuminated Surfaces: 2.0 m
    • AC Power Input: Neutrik PowerCon
    • DMX and RDM Data In/Out: 5-pin locking XLR
    • AC Power: 120–240 V nominal, 50/60 Hz
    • Maximum Total Power Consumption: 1020 W
    • Power Supply Unit: Auto-ranging electronic switch mode
    • Typical Half-Cycle RMS Inrush Current: 10.3 A
    • Typical Power Consumption, All Effects Static, Zero Light Output: Approx. 50 W
    • Typical Power and Current, 120 V, 60 Hz: 7.4 A, 880 W, PF 0.999
    • Typical Power and Current, 208 V, 60 Hz: 4.2 A, 860 W, PF 0.995
    • Typical Power and Current, 230 V, 50 Hz: 3.8 A, 856 W, PF 0.993
    • Typical Power and Current, 240 V, 50 Hz: 3.7 A, 858 W, PF 0.992
    • Cooling: Forced air, temperature-regulated, low noise, user-definable levels
    • Maximum Ambient Temperature (Ta max.): 40°C
    • Minimum Ambient Temperature (Ta min.): 5°C
    • Total Heat Dissipation: 3480 BTU/hr.
    • Length: 452 mm (17.8 in.)
    • Width (Across Yoke): 431 mm (17.0 in.)
    • Height (Maximum): 581 mm (22.9 in.)
    • Height (Head Straight Up): 511 mm (20.1 in.)
    • Weight: 21 kg (46.3 lb.)
CONTENTS
    (1) Martin MAC Quantum Wash LED Moving Head Light
    (2) Omega Brackets
    (1) Operator's Instructions
