MAC Aura XIP is a premium moving head wash light with a radical aura filament effect and full pixel control with video mapping capabilities onto the beam, aura, or both. It’s Martin's latest addition to the MAC Aura family of workhorse wash lights and the first fixture in its class to be rated for outdoor use, with close to zero compromises in weight, size, and aesthetics due to Martin’s smart outdoor-capable design. It raises the bar for optical quality, featuring an even wash field with soft edge, minimal stray light, and high intensity mid-air beams with improved light engine control.
Perfect for a wide range of concert and touring productions, MAC Aura XIP is equipped with a smart, outdoor design for festivals and events, while still being quiet and lightweight enough for theater, television, corporate events and more.
While MAC Aura XIP offers lighting designers a range of possibilities with its aura filament effect, narrower beam and better wash quality with improved light engine control; rental customers will appreciate a workhorse that is lighter and more versatile with optical improvements and a sealed design, allowing the product to be used virtually anywhere and require less maintenance.
- 6,000 lumens RGBW light output
- High narrow intensity: 360,000 cd
- Tight beam and beautiful wash field
- 6.3 – 50.4° zoom – Precise, silent and fast zoom
- Creates an even softer edge wash field
- Minimal impact to Aura filament effects
- RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
- Calibrated and Extended Color Modes
- More than 200 built-in FX macros with control of foreground color, background color, speed and direction
- Ultra-quiet cooling system
- Theater / Broadcast mode at just 25.2 dB(A)
- Smart outdoor rating for any weather condition
- Battery-powered control panel on the base
- Ethernet in & thru, supporting Art-Net, sACN & Martin P3
| AC Power |
100-240 V AC nominal, 50/60 Hz |
| Power Supply Unit |
Auto-ranging electronic switch mode |
| Power Consumption |
340W |
| Cooling |
Forced air (temperature regulated, low noise, user-definable levels) |
| Sound Pressure Level (LpA) @ 1 m (default regulate |
34.4 dB(A) |
| Approval/Ratings |
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) |
| Control Protocols |
DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3 |
| DMX Modes |
Compact, Basic, Extended & Ludicrous |
| DMX Channels |
20, 36, 57 & 93 |
| Front Lens Diameter |
196 mm (7.72 in.) |
| Zoom Range |
1:6 |
| Light Engine Luminous Output |
11,000 lumens |
| Fixture Luminous Output Wide |
6,000 lumens |
| Fixture Luminous Output Narrow |
4,500 lumens |
| Housing |
High-impact flame-retardant thermoplastic |
| Color |
Black |
| Protection Rating |
IP54 |
| Mounting Points |
2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets and single M12 threaded hole for rigging clamp Location: Indoor or Temporary Outdoor use |
| Orientation |
Any, except with display facing upwards in outdoor application |
| Firmware from flash memory |
USB 2.0 type C port |
| AC mains power in/thru |
Neutrik powerCON TRUE1 TOP |
| DMX and RDM data in/thru |
Neutrik 5-pin locking XLR TOP |
| Product Dimension |
16.6" x 13.4" x 12.1" |
| Product Weight |
19.73 lbs |

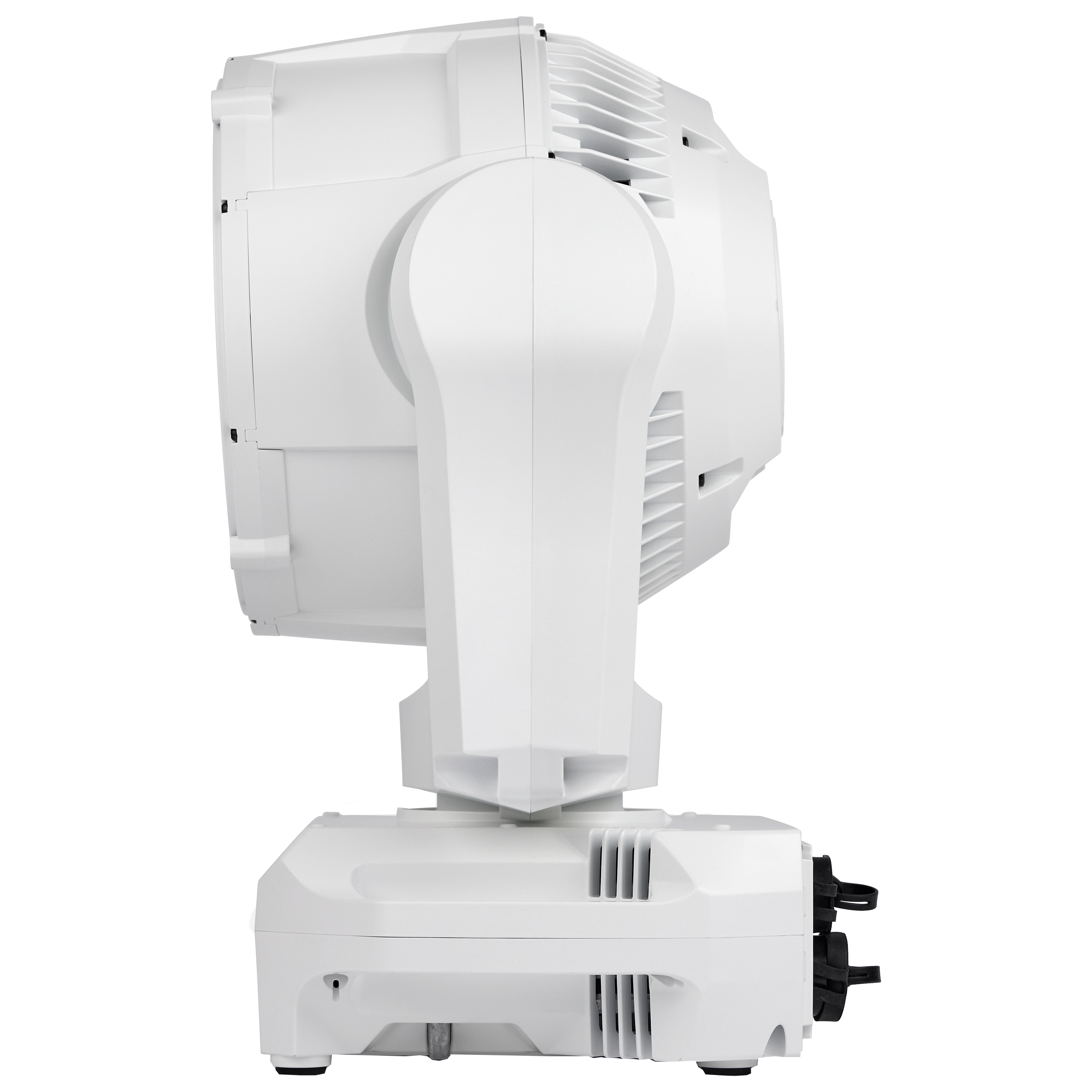

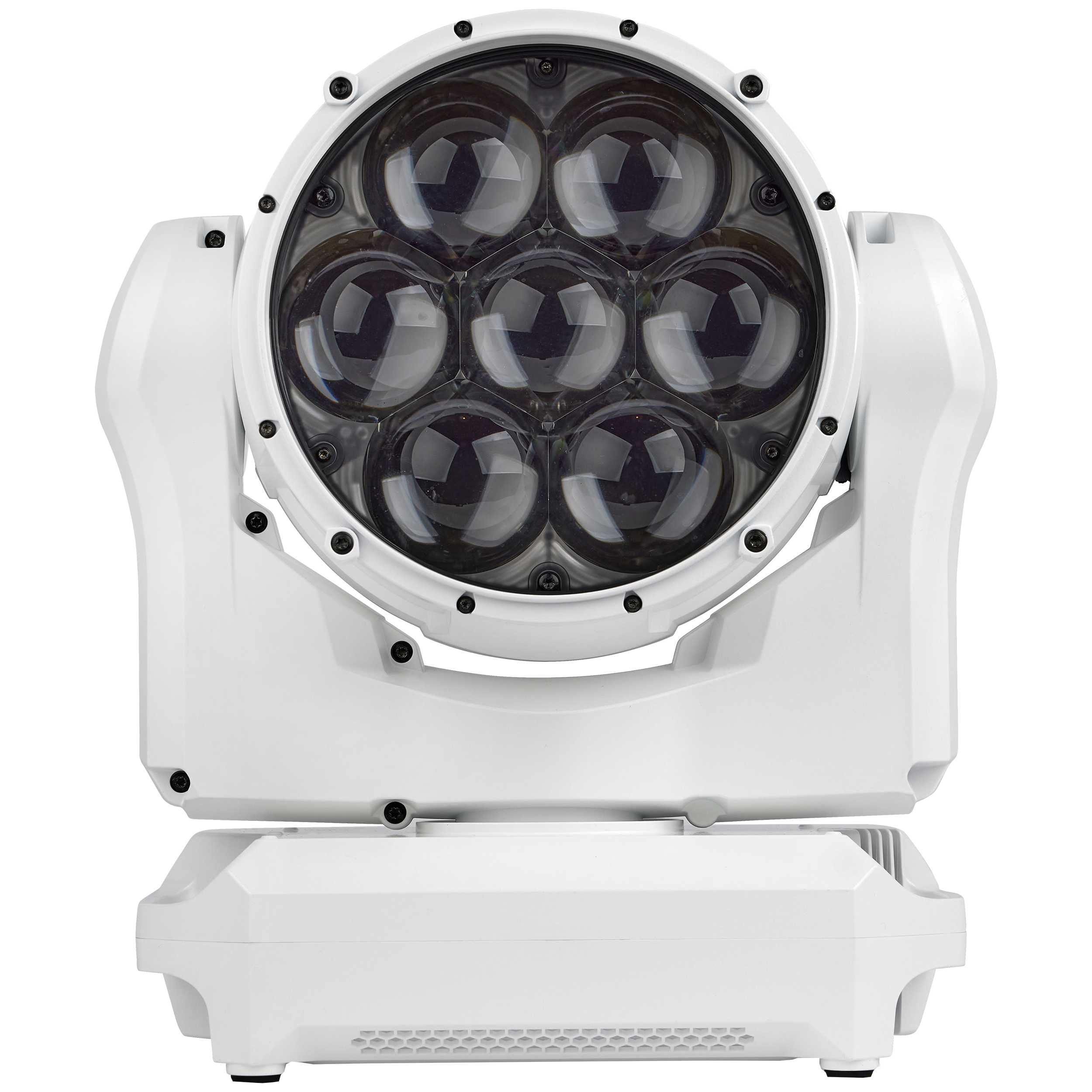

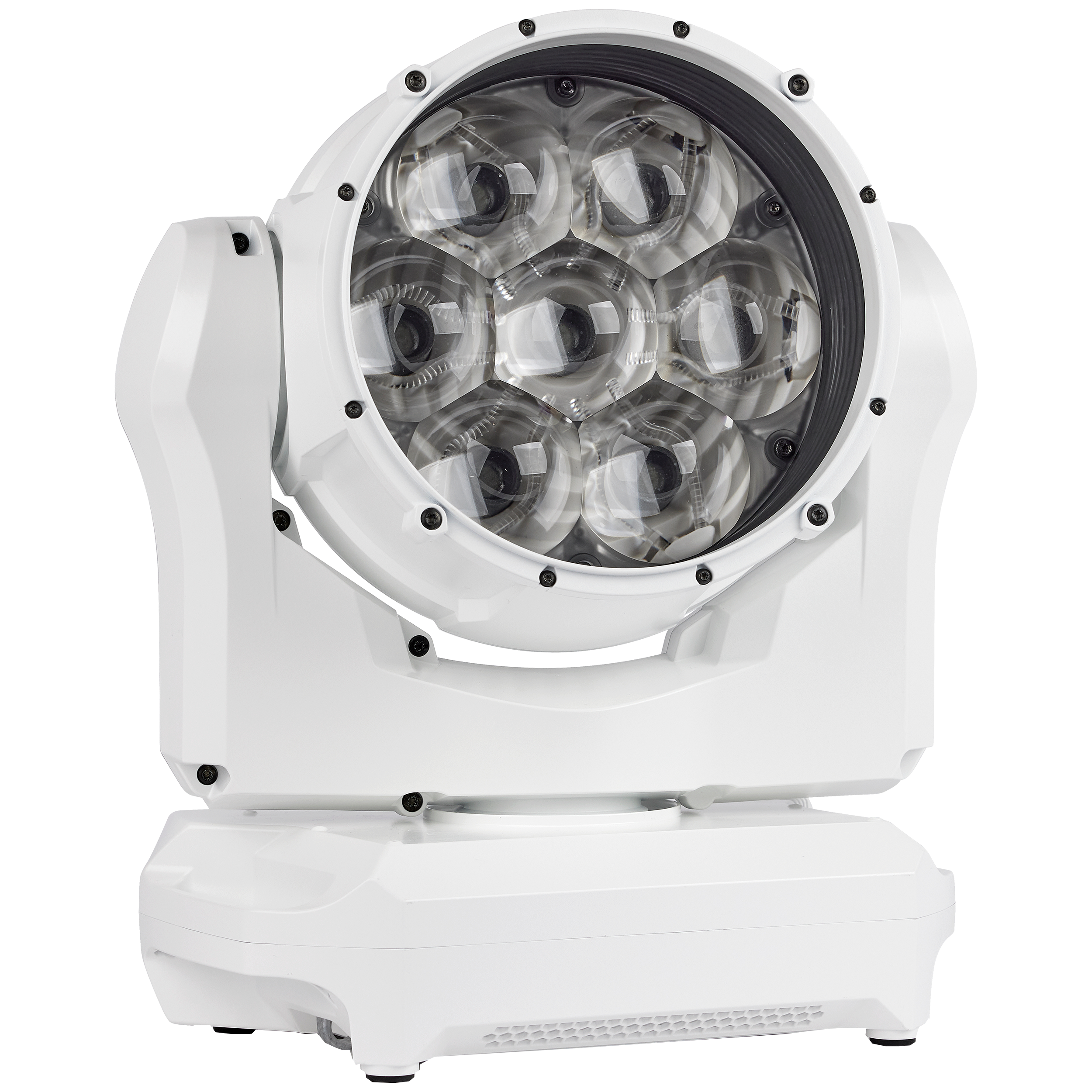

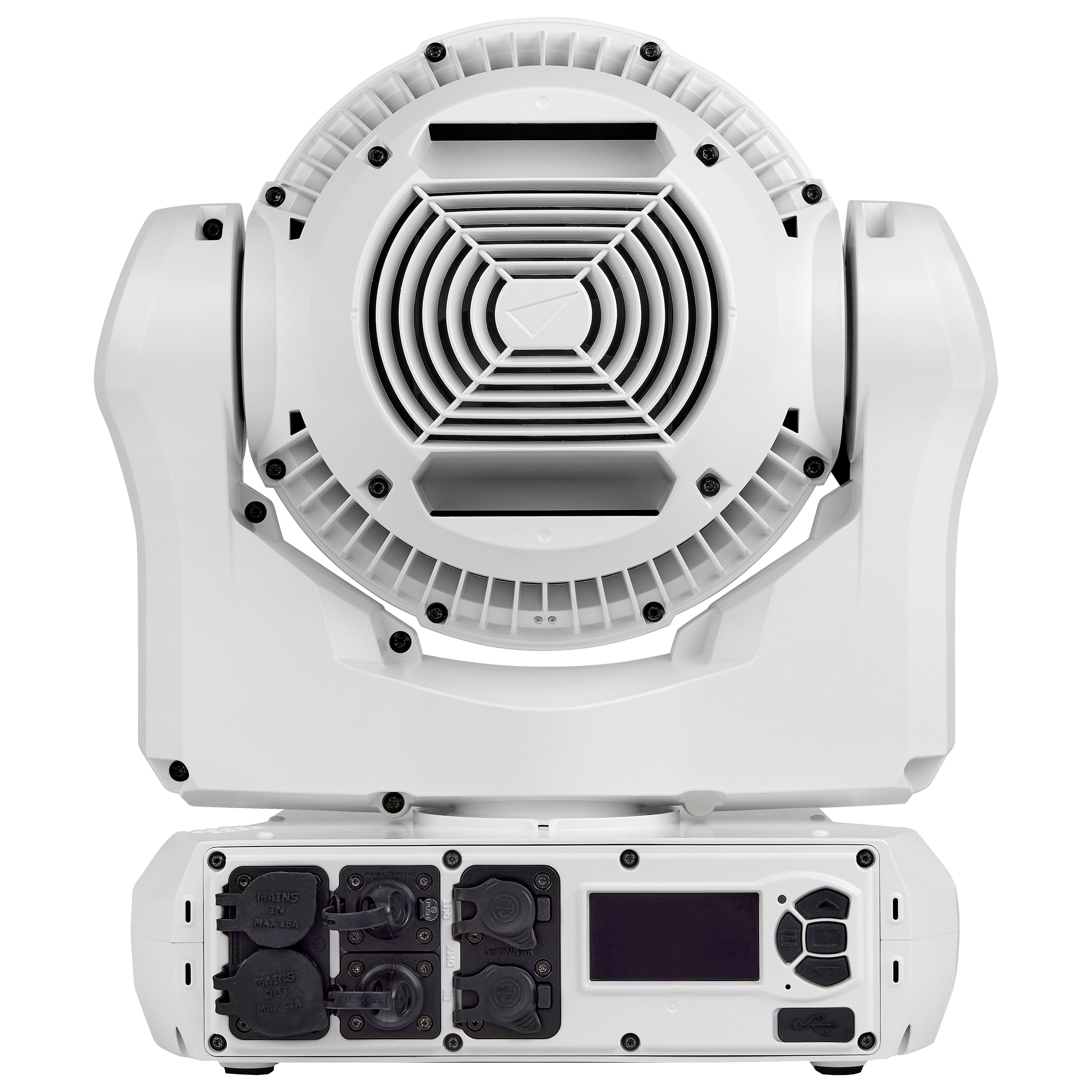

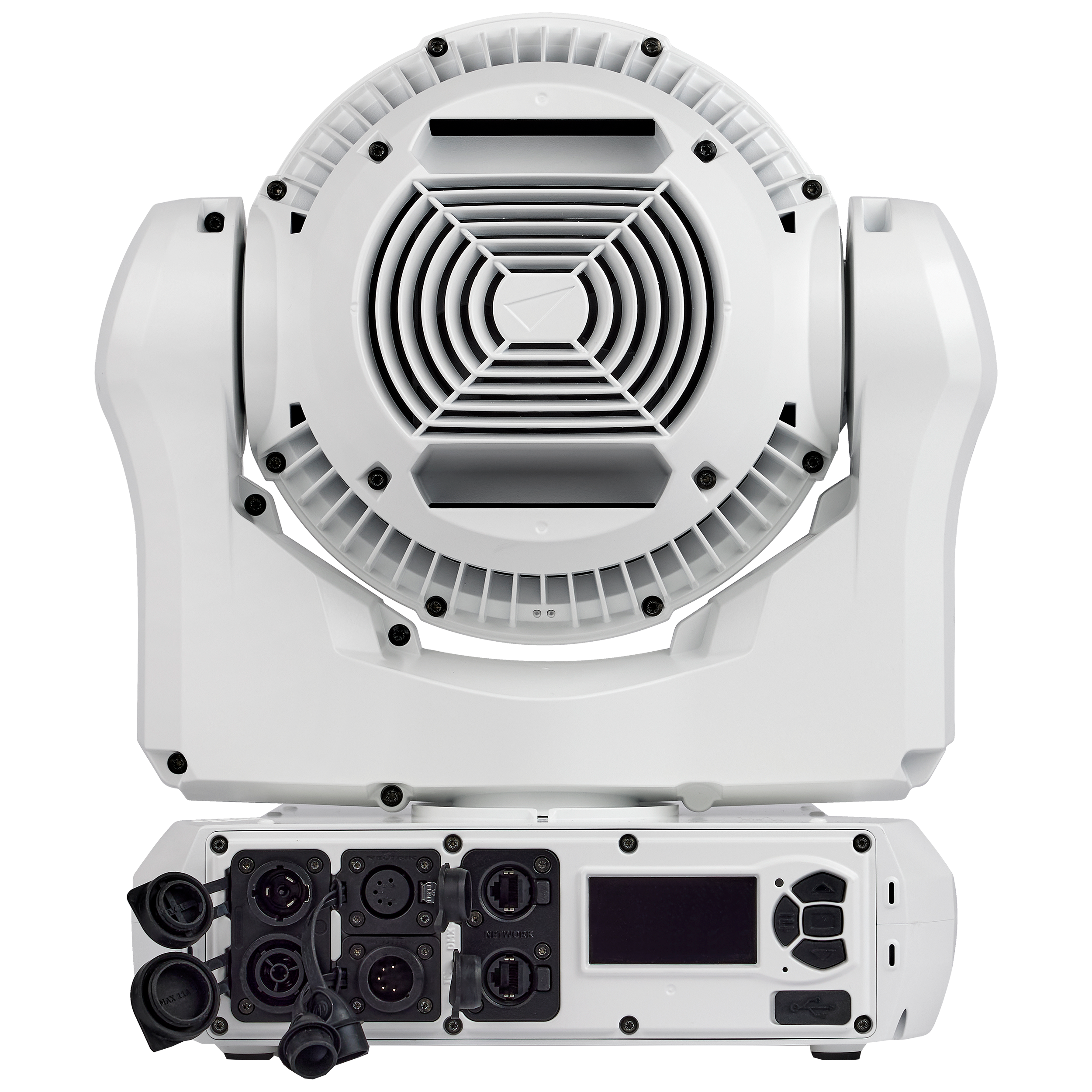

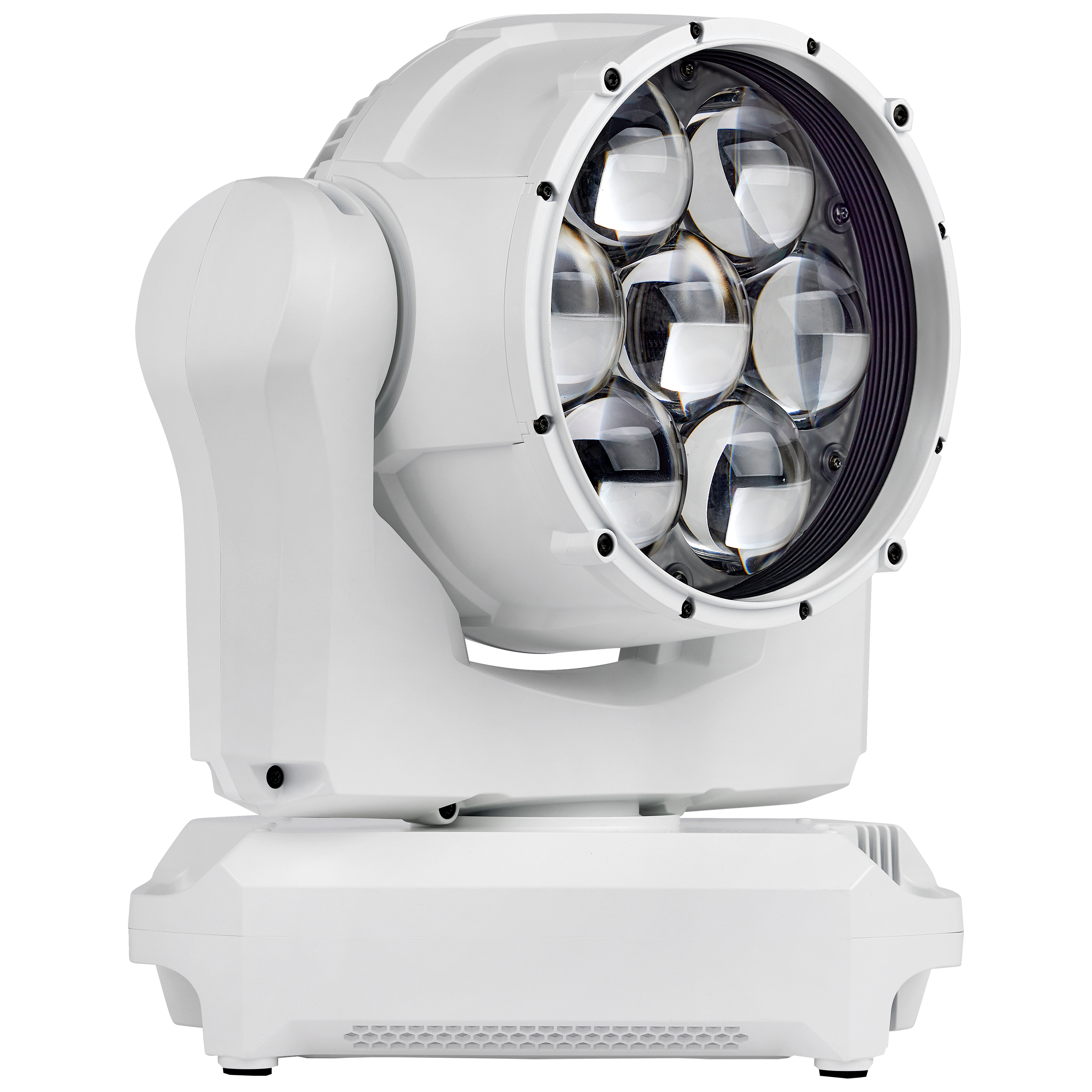

(1) Martin MAC Aura XIP Wash Moving LED Light in White
(2) Omega brackets with 1/4 turn fasteners for rigging clamp attachment
(1) SoftLens
(1) Multi-Language Safety and Installation Manual
