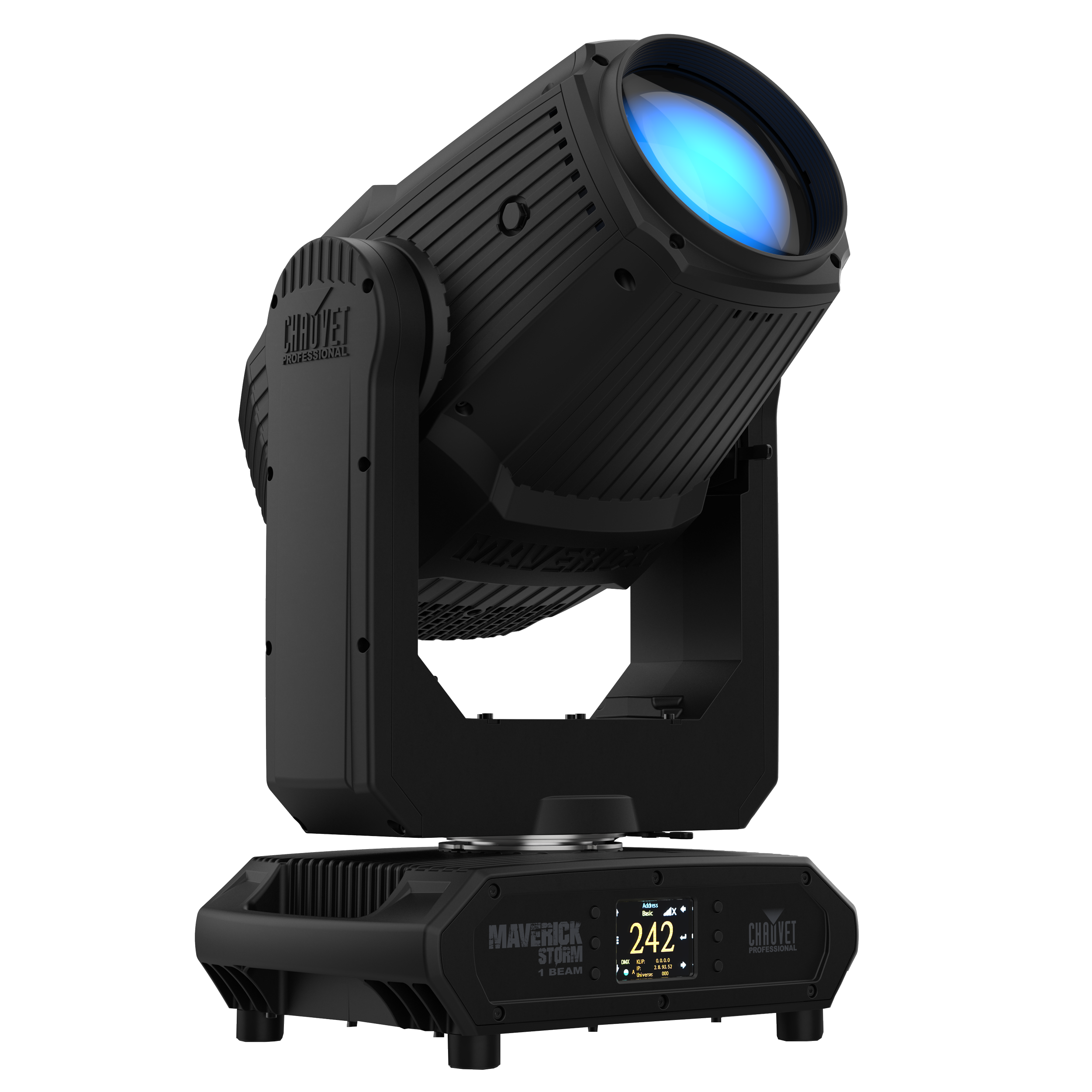

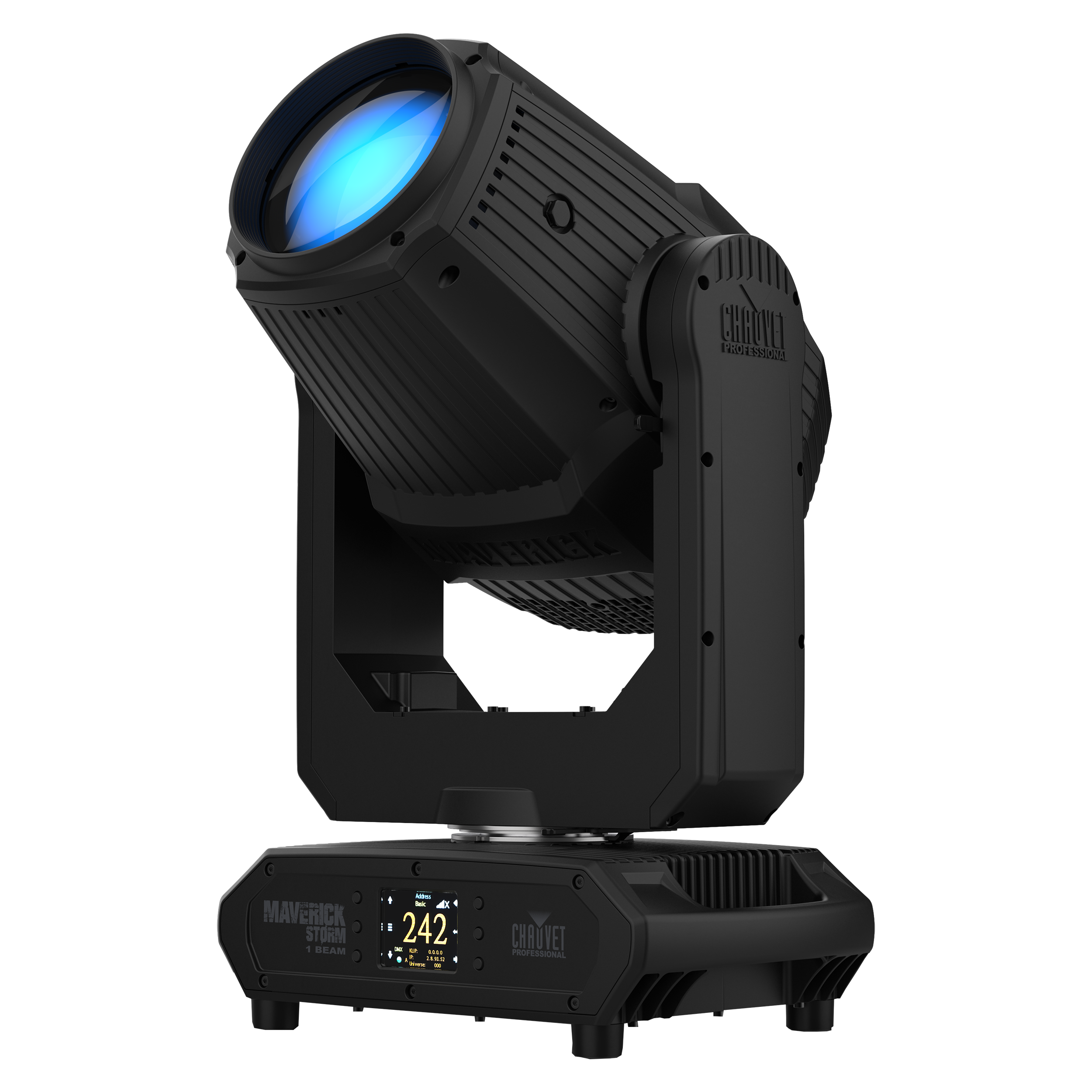

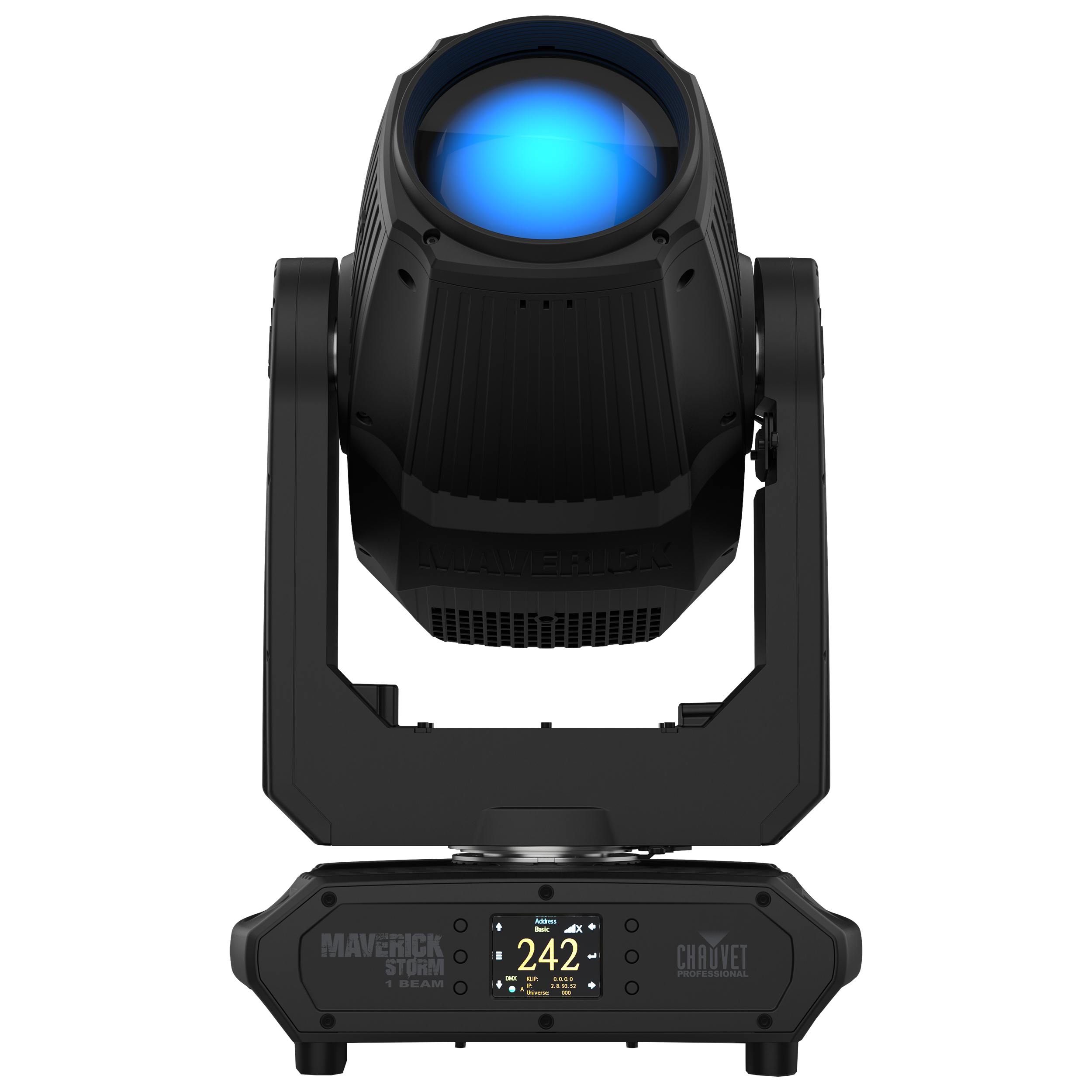

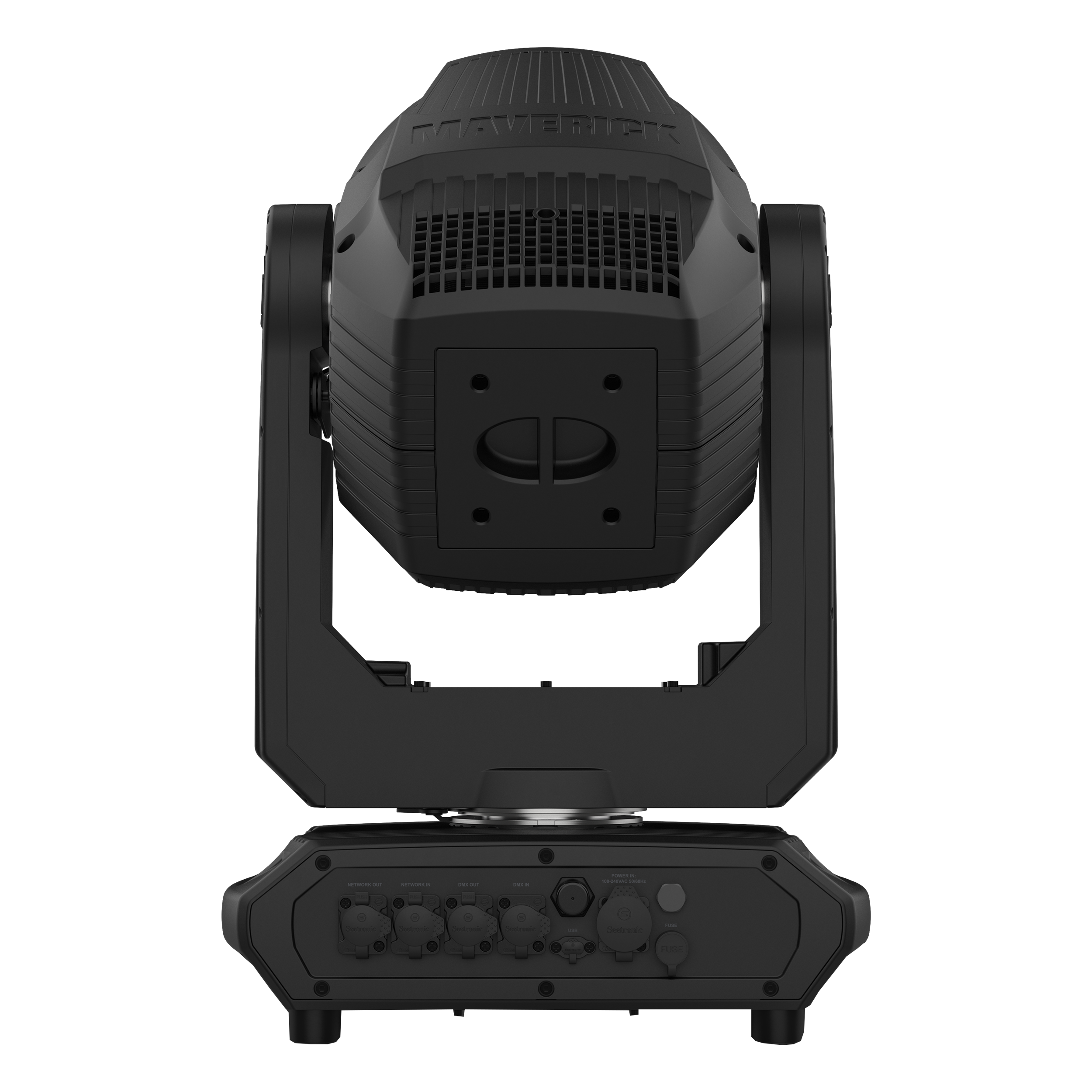

Maverick Storm 1 Beam brings CMY color mixing and stadium-scale output in a lightweight compact alloy-armored IP65-rated fixture that delivers sharp beam effects and precise color. With an optical system designed to capture the full force of its SIRIUS HRI 310W source, this powerful beam fixture slices through every other effect. Tightly focused aerials and dual layerable independent prisms create massive visual effects, with frost to fine-tune looks and light distribution. Maverick Storm 1 Beam speaks DMX, ArtNet, sACN, RDM and W-DMX.
• Fully featured, IP65 rated, high powered Beam fixture with an OSRAM SIRIUS HRI 310 W lamp 6,000 hour life expectancy lamp, CMY color mixing, 1 gobo wheel, 2 layerable prisms, precision focus, and lightweight aluminum/magnesium housing
• CMY Color mixing
• 13 + open color wheel
• Frost for even light distribution
• Tight 1.3° narrow beam angle for focused air effects and no field spill
• Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact
• 17 static gobos for massive visual effect
• DMX, RDM sACN, ArtNet, and WDMX protocol control
• True 1 compatible power input
• Easy to read OLED display with simple, effective menu options
• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
OPTICAL
Light Source: SIRIUS HRI 310 W lamp 7650K, 6,000 hours life expectancy
Color Temperature (At Full): 7178 K
CRI: 80.1
Beam Angle: 1.3°
Field Angle: 2.3°
Cutoff Angle: 3 °
Lumens – Output: 30,639
Illuminance (Total): 190,709 lux @ 15 m
DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos: 17 + open (17 metal), continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (static): 123 mm (outside), 6 mm (image), 1 mm (max. thickness)
Dimmer: Motorized
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 5 Facets, motorized, rotating
Prism: 8 Facets, motorized, rotating
Move-in-Black: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 15.28 x 10.04 x 25.91 in (388 x 255 x 658 mm)
Weight: 51.2lb (23.3 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel
CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated
Cable Length (Power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM, ArtNet, sACN, Lumen Radio
DMX Channels: 19 or 21
Modes/Personalities: 2 personalities (19, 21)
(1) Chauvet Maverick Storm 1 Beam
(1) Seetronic Powerkon IP65 Power Cord
(2) Omega Brackets with Mounting Hardware
(1) Quick Reference Guide
