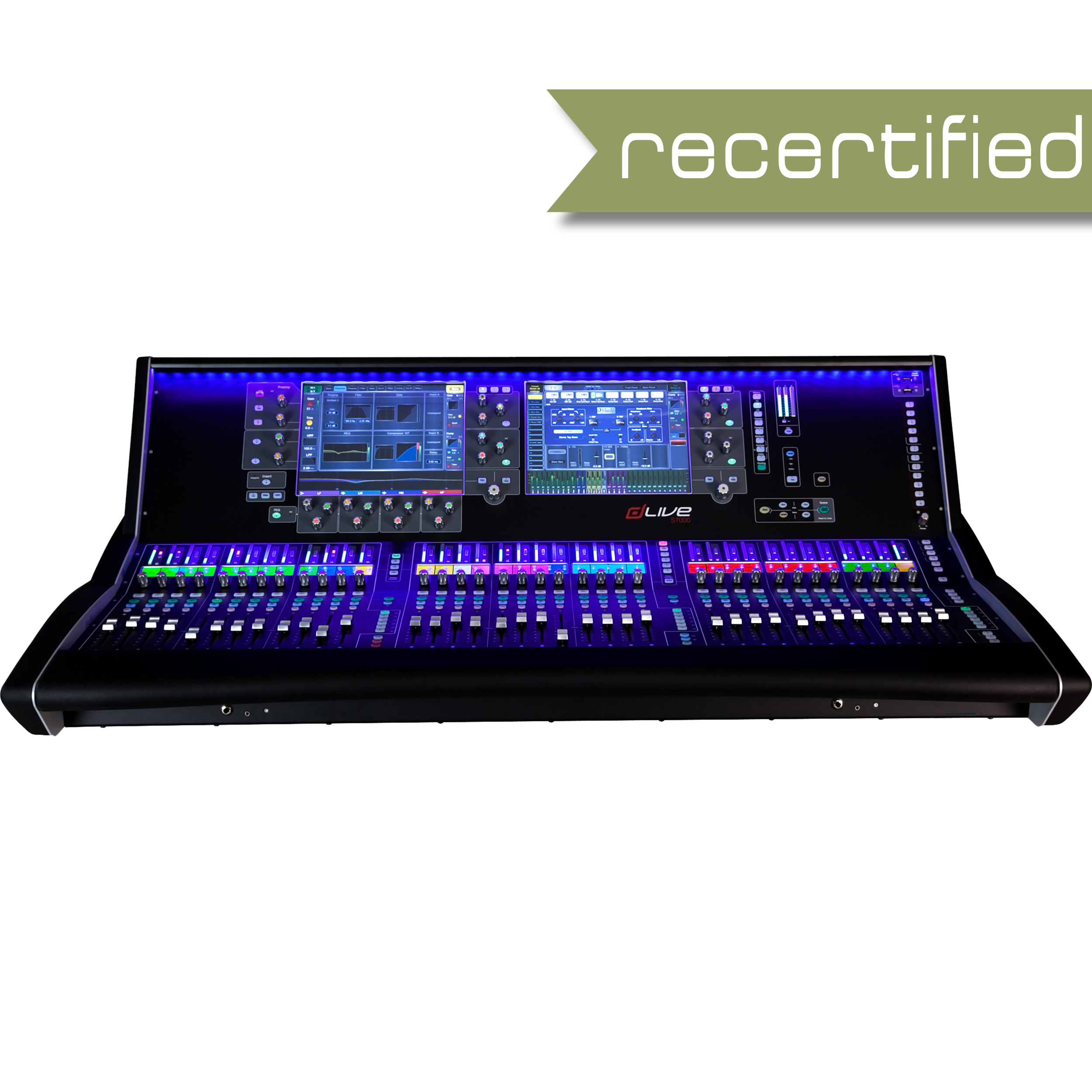

Allen & Heath dLive S7000 Surface
0%, only 1 left
Allen & Heath dLive S7000 Surface

Allen & Heath dLive S7000 Surface

Product SKU
    Product SKU#: 32666
$29,999.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION
The Allen & Heath dLive S7000 Surface is a top-tier digital mixing console known for its robust performance and versatility, ideal for professional live sound applications. This used unit retains its signature 36 fader layout, offering a comprehensive and intuitive control interface for managing complex audio productions. With a 12-inch capacitive touchscreen, the S7000 provides a responsive and user-friendly experience, facilitating seamless navigation through its extensive feature set, including customizable channel strips, comprehensive metering, and advanced processing capabilities. It supports up to 128 input channels and 64 mix buses, delivering exceptional sound quality and flexibility. Despite being pre-owned, this console has been meticulously maintained, ensuring reliable performance for any high-demand live sound environment.
FEATURES
    • Fully assignable layout
    • Harmony UI – integrated screen and ‘wrap-around’ controls
    • Single or twin 12” capacitive touchscreen
    • Gesture control – pinch, swipe, drag ‘n drop
    • Configurable widget areas for Scenes, meters, FX and more
    • 3 pages of assignable rotaries per screen
    • 26 assignable SoftKeys
    • Engineer’s Wedge and IEM fader strips
    • Comprehensive multipoint metering
    • Daylight visibility
    • USB stereo recording and playback
    • Dual redundant, hot swappable power supply
SPECIFICATIONS
    Inputs
    Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    Mic/Line Preamp: Fully recallable
    Input Sensitivity: -60 to +15dBu
    Analogue Gain: +5 to +60dB, 1 dB steps
    Pad: -20dB active PAd
    Maximum Input Level: +30dBu (PAD in)
    Input Impedance: >4kOhms (Pad out), >10kOhms (Pad in)
    Mic ein: -127dB with 150Ohms source
    Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V

    System
    Dynamic Range: 110dB
    System Signal to Noise: -92dB
    Frequency Response: 20Hz - 30kHz +0/-0.8dB
    THD+N (Analogue In to Out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    Headroom: +18dB
    Internal Operating Level: 0dBu
    dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)

    Digital Inputs
    Meter Indication: -3dBFS (+19dBu at XLR out)

    Outputs
    Analogue XLR Outputs: Balanced, Relay Protected
    Output Impedance: <75 Ohms
    Nominal Output: +4dBu = 0dB meter reading
    Maximum Output Level: +22dBu
    Residual Output Noise: -92dBu (muted, 20-20kHz)
    Residual Output Noise: -90dBu (muted, 20-40kHz)
    Latency: 0.7ms (MixRack XLR in to XLR out, Input to Mix)
    Latency: + 5 samples, Surface to Mixrack (GigaACE hop)
    Latency: + 8 samples, DX32 to Mixrack (DX hop)
    Digital Outputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ohms
CONTENTS
    (1) Allen & Heath dLive S7000 Surface
    (1) Getting Started Guide AP9899
    (1) Safety Sheet
    (1) IEC mains lead
    (1) Dust Cover
