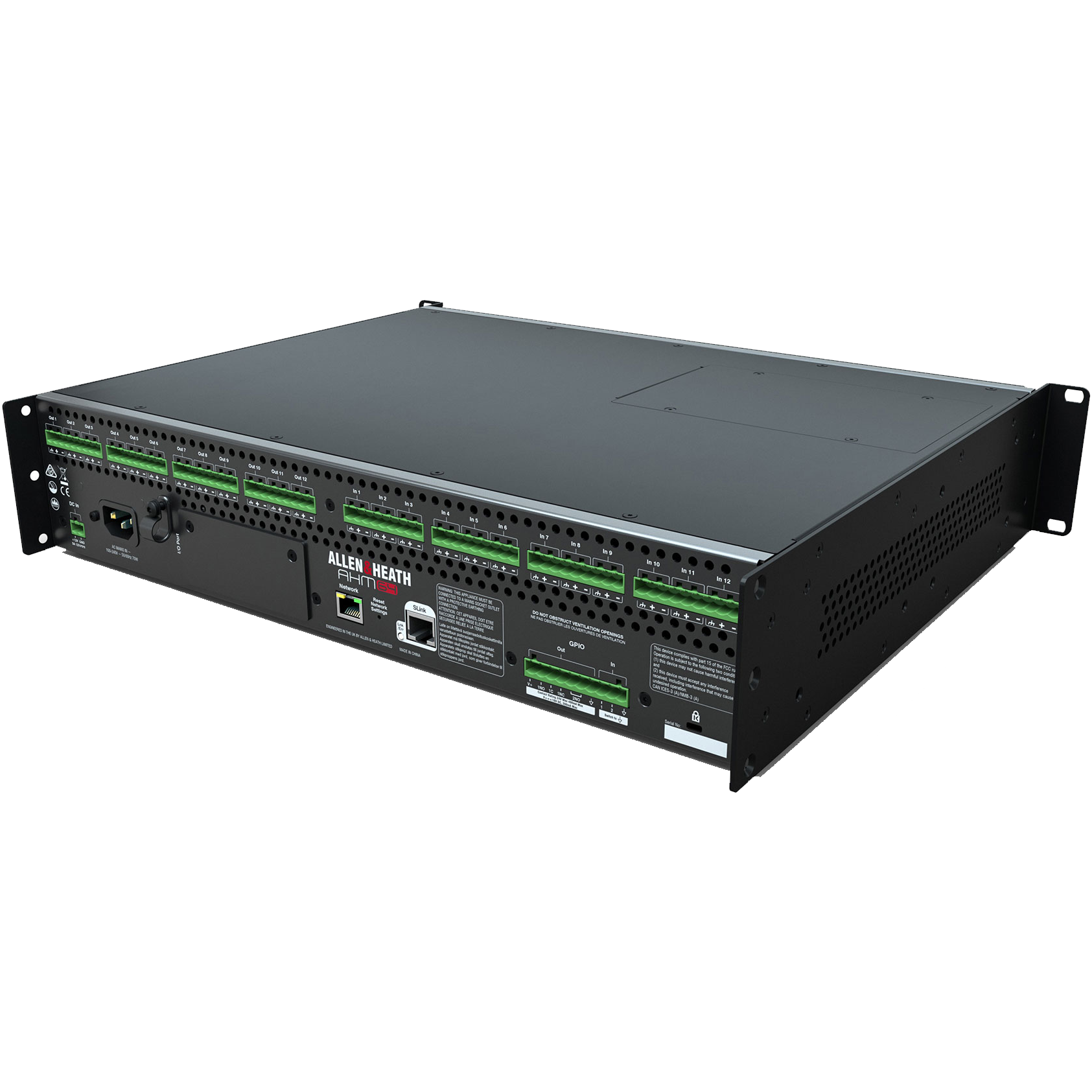

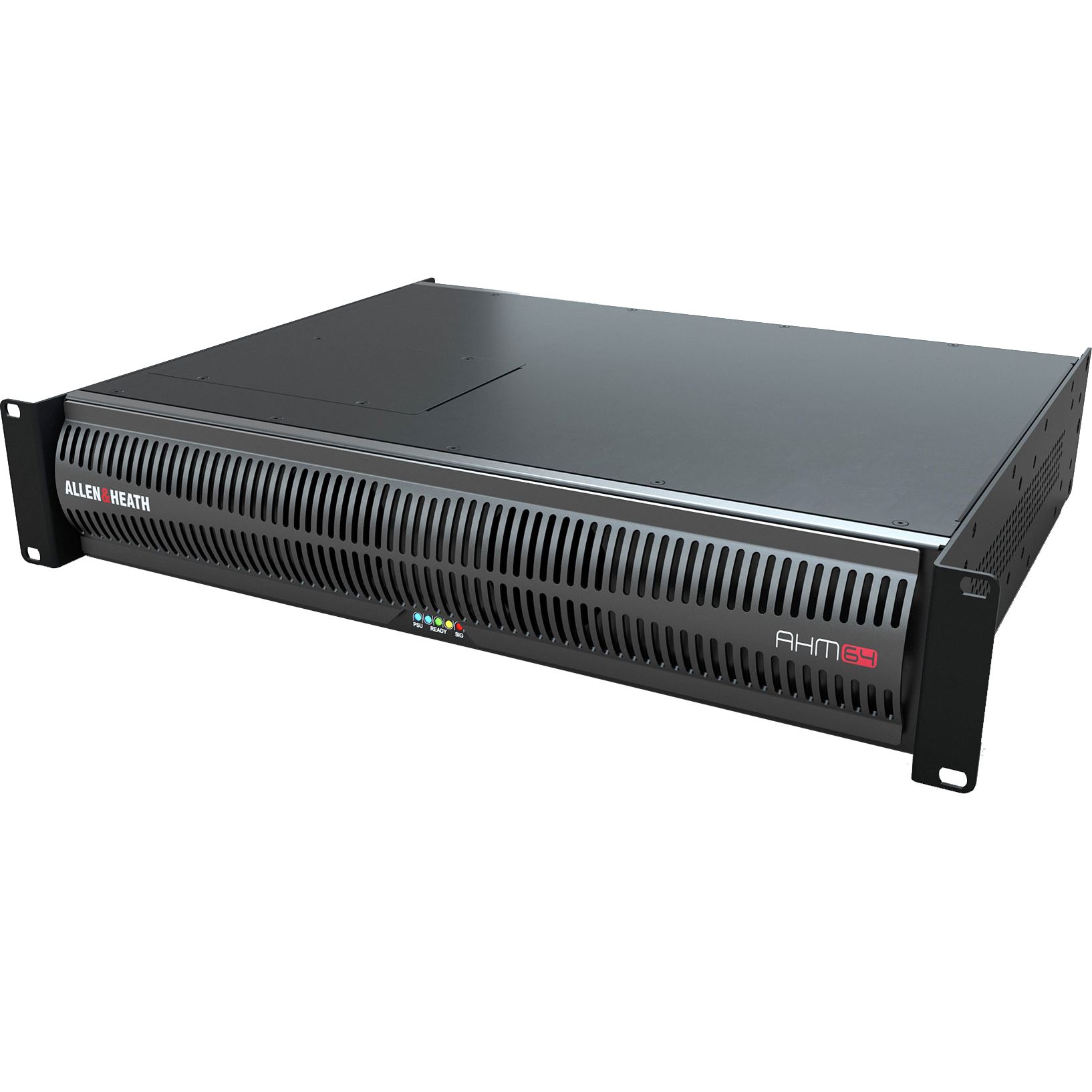

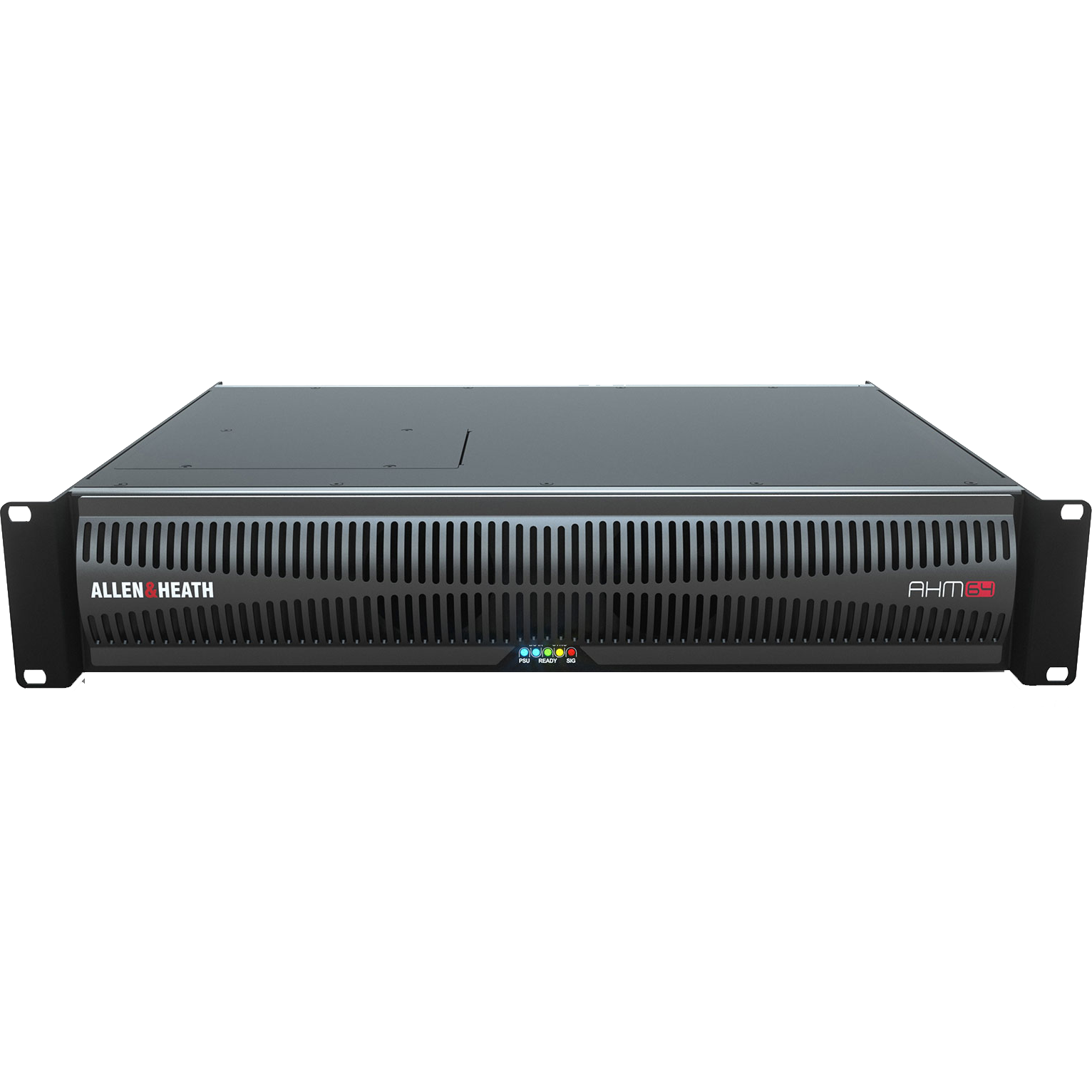

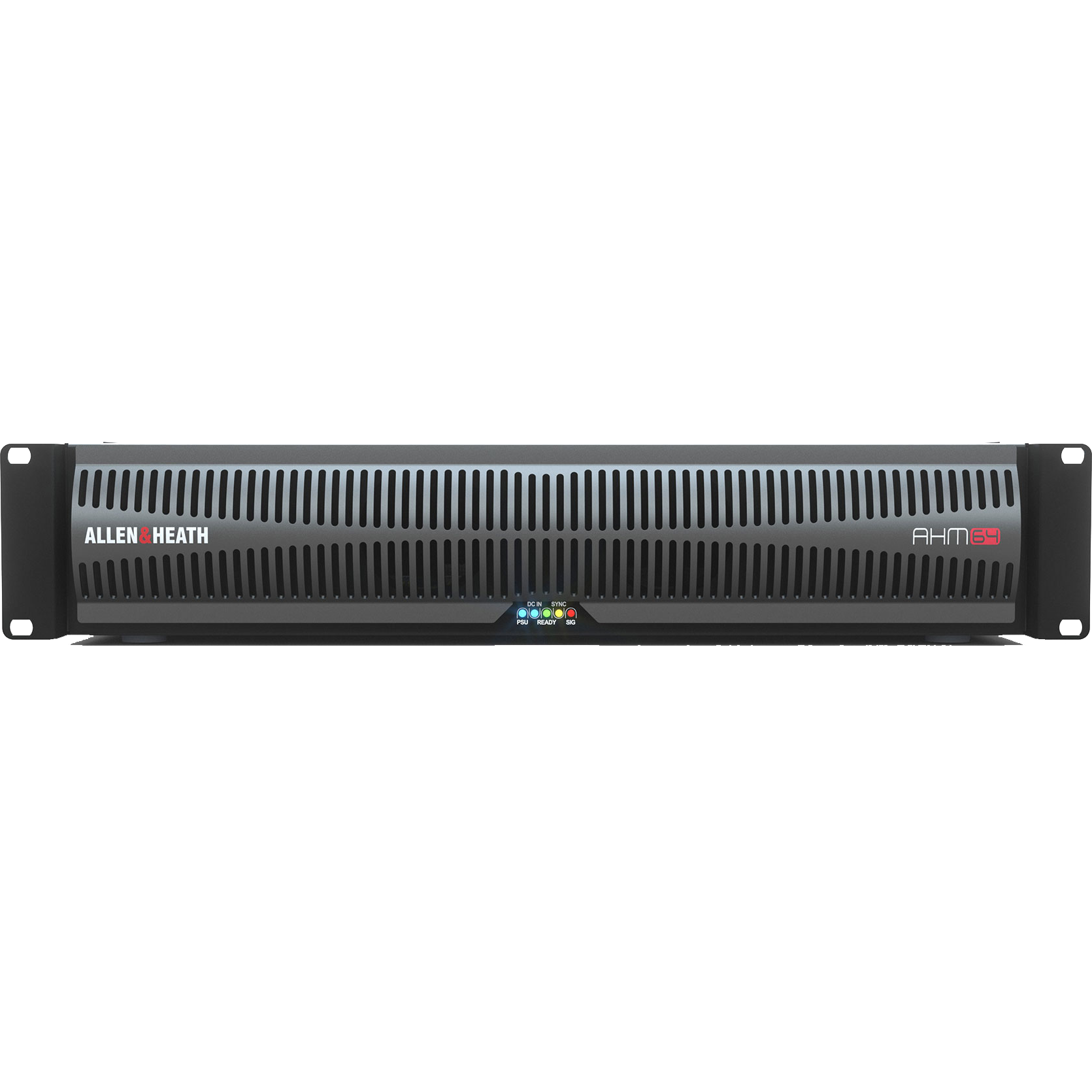

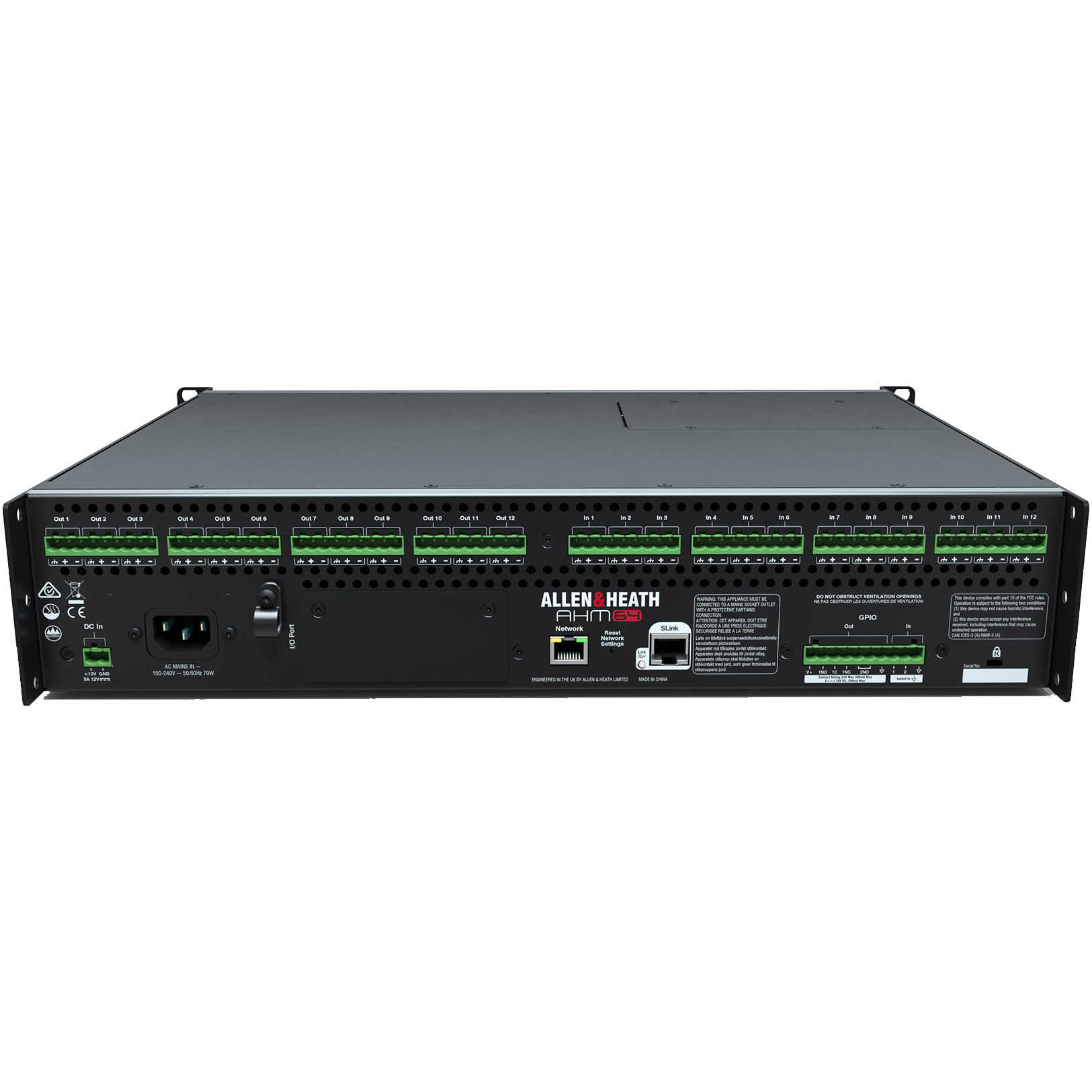

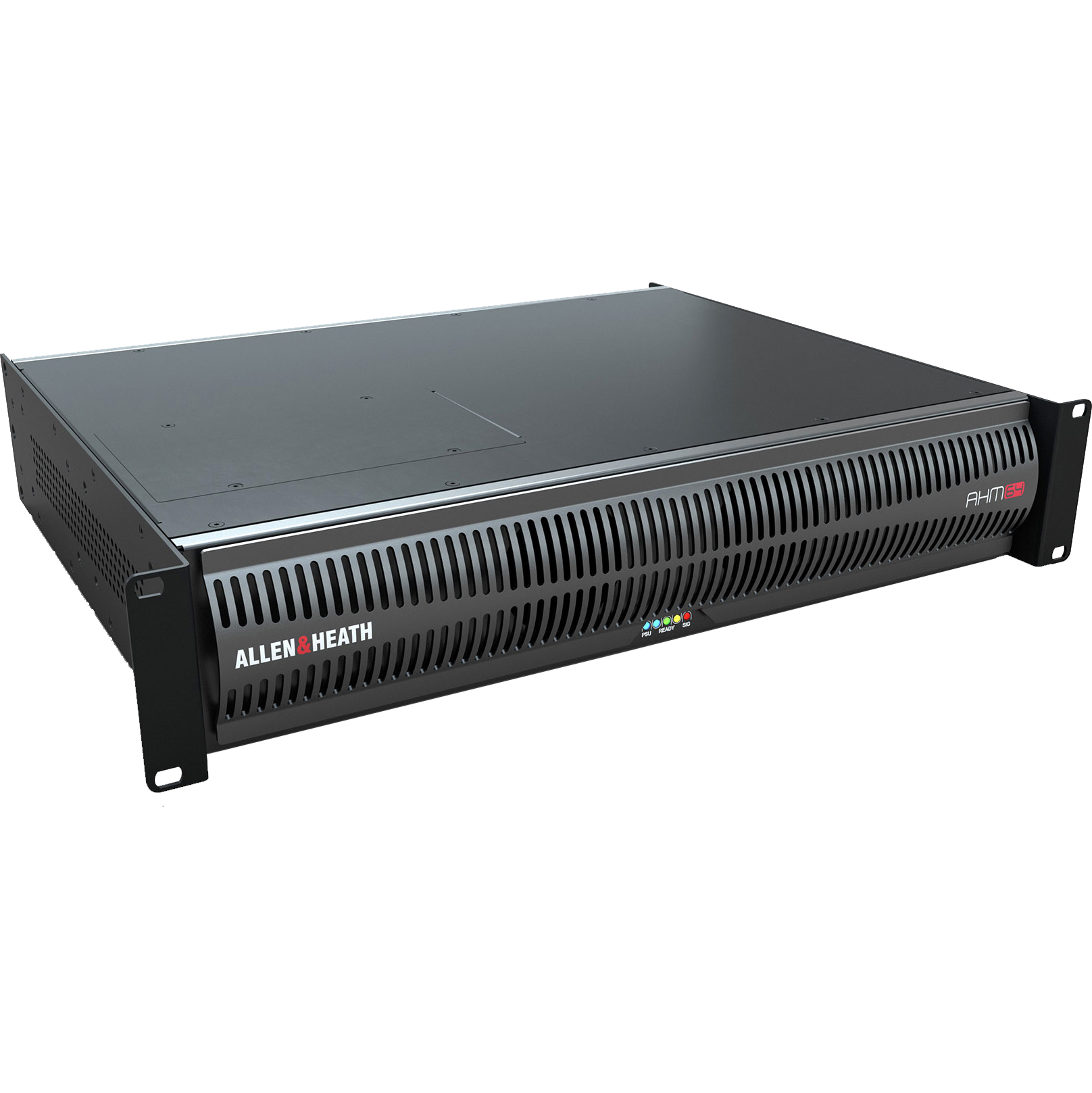

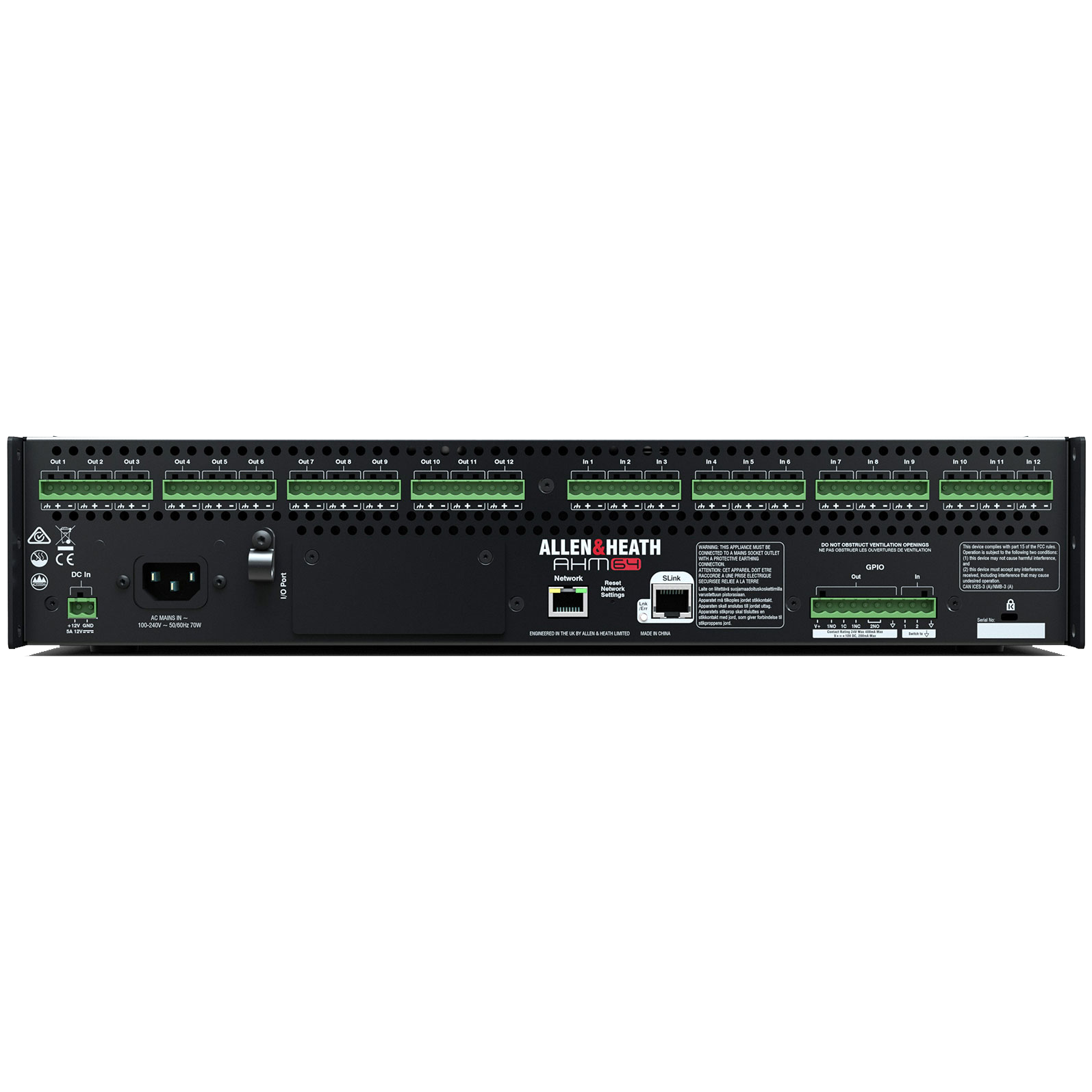

The Allen & Heath AHM-64 Processor is a cutting-edge audio matrix processor designed for versatile and high-performance audio management in professional sound installations. With 64x64 matrix capabilities, it provides unparalleled flexibility for routing, processing, and managing audio in various environments such as conference centers, hotels, theaters, and educational institutions. The AHM-64 features a comprehensive range of control options, including intuitive software, third-party control integration, and customizable touchscreen interfaces, allowing for seamless operation and tailored audio solutions. Its robust processing power ensures exceptional audio quality, while its scalable architecture supports future expansion, making it an ideal choice for both current needs and future growth.
• 64x64 processing matrix
• 12x12 local analogue I/O
• I/O Port for audio networking, up to 128x128
• Dante 96kHz option card (AES67 and DDM ready)
• SLink 128x128 option card for audio expansion
• 64 configurable processing outputs – mono / stereo zones or speaker processing
• 96kHz FPGA core with ultra-low latency
• Front panel screen and navigation
• Compatible with IP1, IP6, IP8 remote controllers
• 2x2 local GPIO plus networkable GPIO interface
• TCP/IP protocol for third party integration
• Crestron, AMX and Extron drivers
• Mac / Windows System Manager software
• Custom Control app and editor for BYOD
• 32 user profiles
• Integrated stereo playback
• Event scheduler
Inputs
Mic/Line Inputs: Balanced, +48V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >3kO (Pad out), >8kO (Pad in)
Mic EIN: -127dB with 150? source
Outputs
Analogue Outputs: Balanced, Relay protected
Output Impedance: <75O
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +21dBu
Residual Output Noise: -92dBu (muted, 22-22kHz)
System: Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
Dynamic Range: 108dB
System Signal to Noise: -92dB
Frequency Response: 20Hz - 20kHz +0/-0.5dB
THD+N (analogue in to out): 0.005% @ +16dBu output, 1kHz +5dB gain
Headroom: +18dB
Sampling Rate: 96kHz +/- 20 PPM
Acoustic Noise: Typical loading, 22 deg C ambient
No I/O Port installed: 31dBA
With I/O Port installed: 33dBA
(1) Allen & Heath AHM Matrix Processor
(1) Operator's Manual
(1) Safety Sheet
(1) IEC Mains Lead
(1) Phoenix connectors with strain relief - 1x 10-pin, 16x 3-pin
