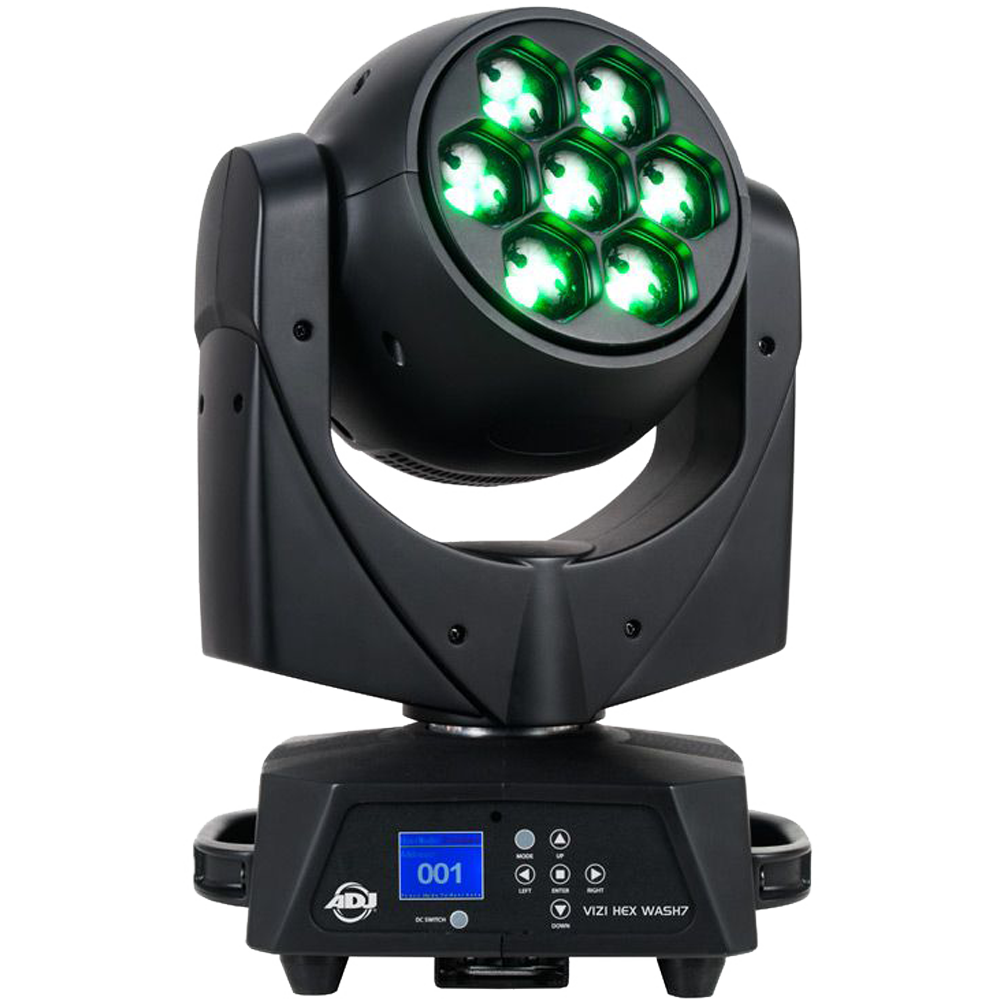

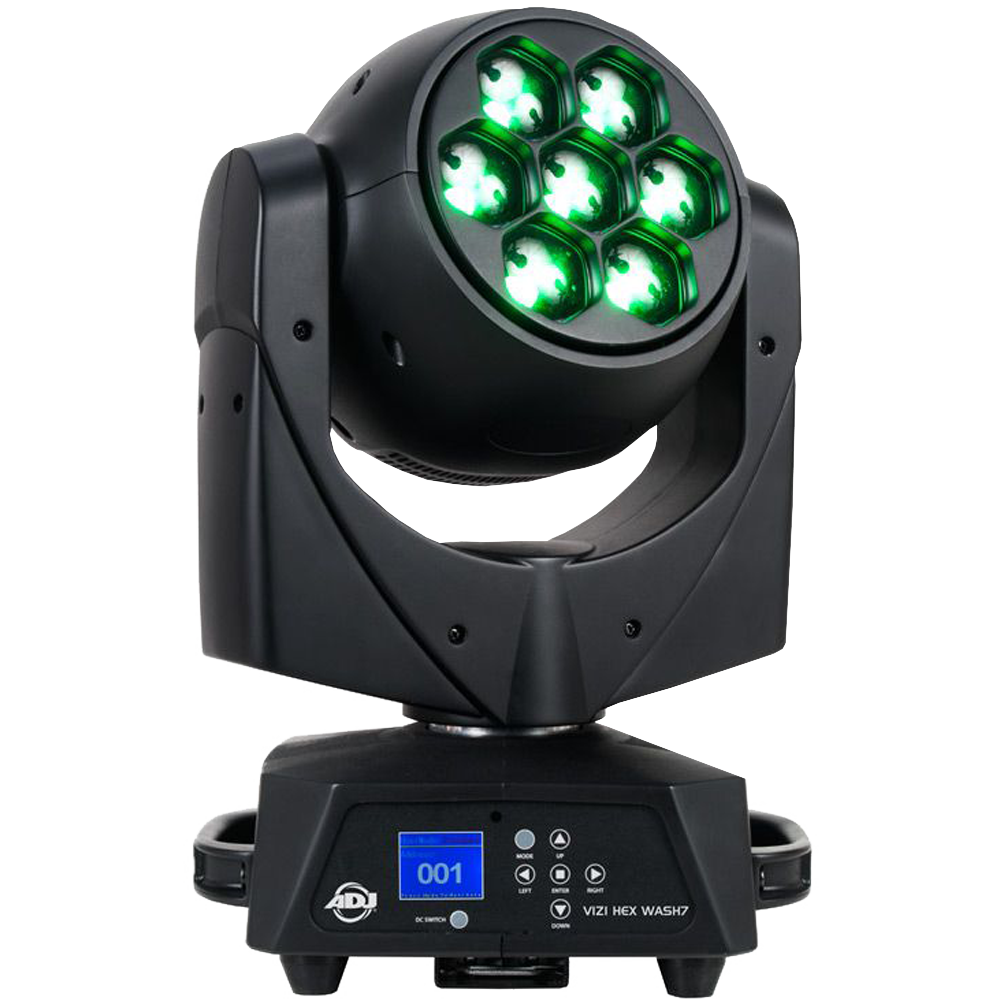

The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55 degrees) and seven 15W HEX (RGBWA+UV) LEDs. It features 64 built-in Color Macros, super fast pan/tilt movement, electronic dimming with 5 dimming curves and a pan/tilt inversion mode or contrasting movement when fixtures are linked together.

The Vizi Hex Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections and locking power In/Out connections for power linking. Plus, this fixture is equipped with ADJ's WiFLY and Aria X2 wireless DMX. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.

FEATURES

• DMX-512 Protocol Compatible (3 DMX Modes: 19 DMX Channel Mode, 21 DMX Channel Mode, and 27 DMX Channel Mode)
• Pan & Tilt Invert
• Locking Power Connector In/Out
• Locking 3/5-P XLR Connector In/Out
• Color Macros + Individual RGBWA+UV Control
• 2 Operating Modes - Auto Program & DMX Control
• Built-In ADJ’s WiFly EXR Wireless DMX Up to 2,500 feet/760M
• Stand Alone Setup or Primary-Secondary Configuration
• Edit and Save Scenes into the Memory

SPECIFICATIONS

Optical:
• Light Source: 7 (15) Watt HEX RGBWA+UV LED
• Life Expectancy: 50,000 hrs
• Beam Angle: 5~55-degree
• Refresh Rate: 1.2KHz

Specifications:
• Pan & Tilt Range: 630-degree (540 Optional) /Tilt 270-degree
• Colors: 64 built-in color macros
• Dimming: Electronic
• Zoom: Motorized 5°-55°
• Strobe: Electronic
• Dimmer Curves: 5 dimmer curves
• Operational Modes: 2 modes Program/ DMX
• Flicker Free
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight). Also compatible with Aria X2 Transceivers for Wireless DMX control.
• Dimensions (LxWxH): 11.75” x 8" x 15.75” / 300 x 200 x 400 mm
• Weight: 19 lbs. / 8.5 kgs

Connections:

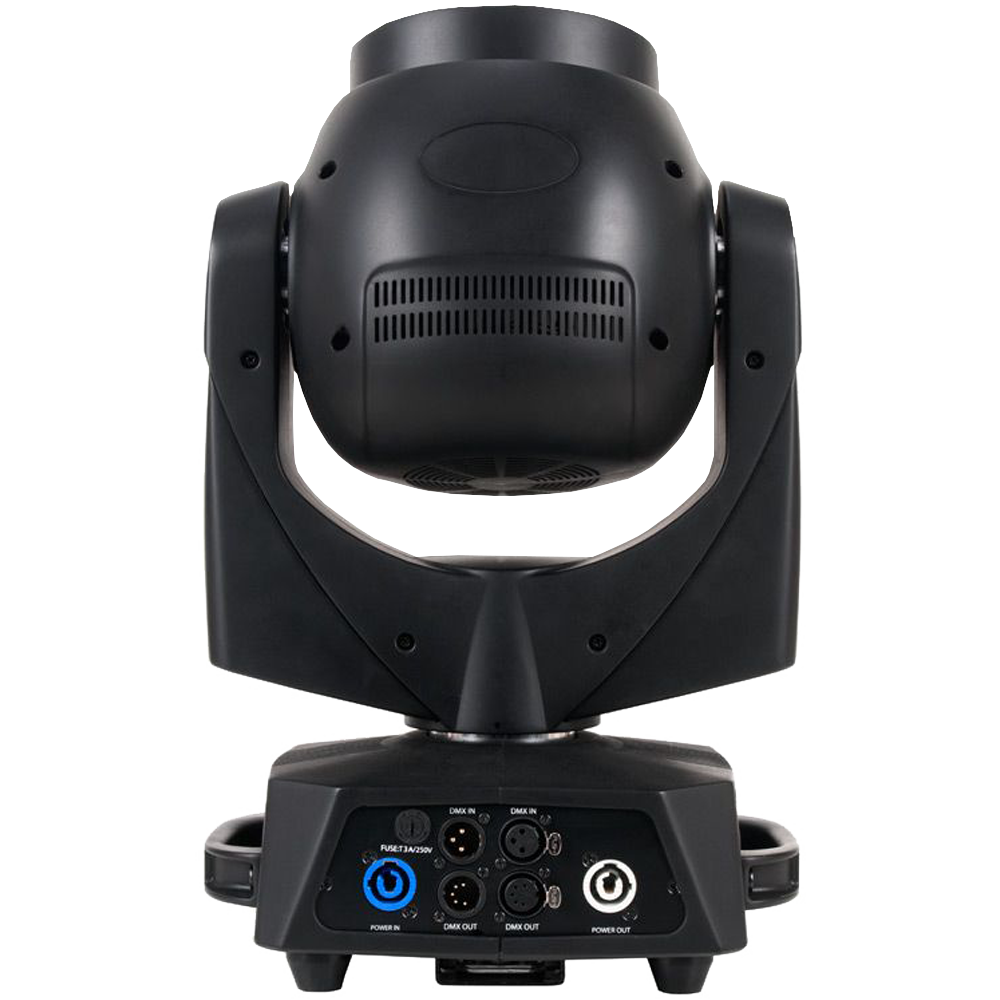

• Power Input: Locking power IN connection
• Power Pass through: Locking power OUT connection
• Data: 3 & 5-pin In/Out DMX
• With Wired Digital Communication Network

Control:
• DMX Modes: 2, RDM (Remote Device Management)
• On Board: LCD menu 180 degree inverse
• 16 Selectable WiFLY Address Channels

Certifications:
• ETL Approved, CE Certified

Electrical:
• Input Voltage: 100~230 V, 50 Hz / 60 Hz
• Power draw @120V: 137W
• Power draw @ 220V

CONTENTS

(1) ADJ Vizi Hex Wash7
(1) Omega Bracket
(1) Locking Power to Edison Cable
(1) User Manual
