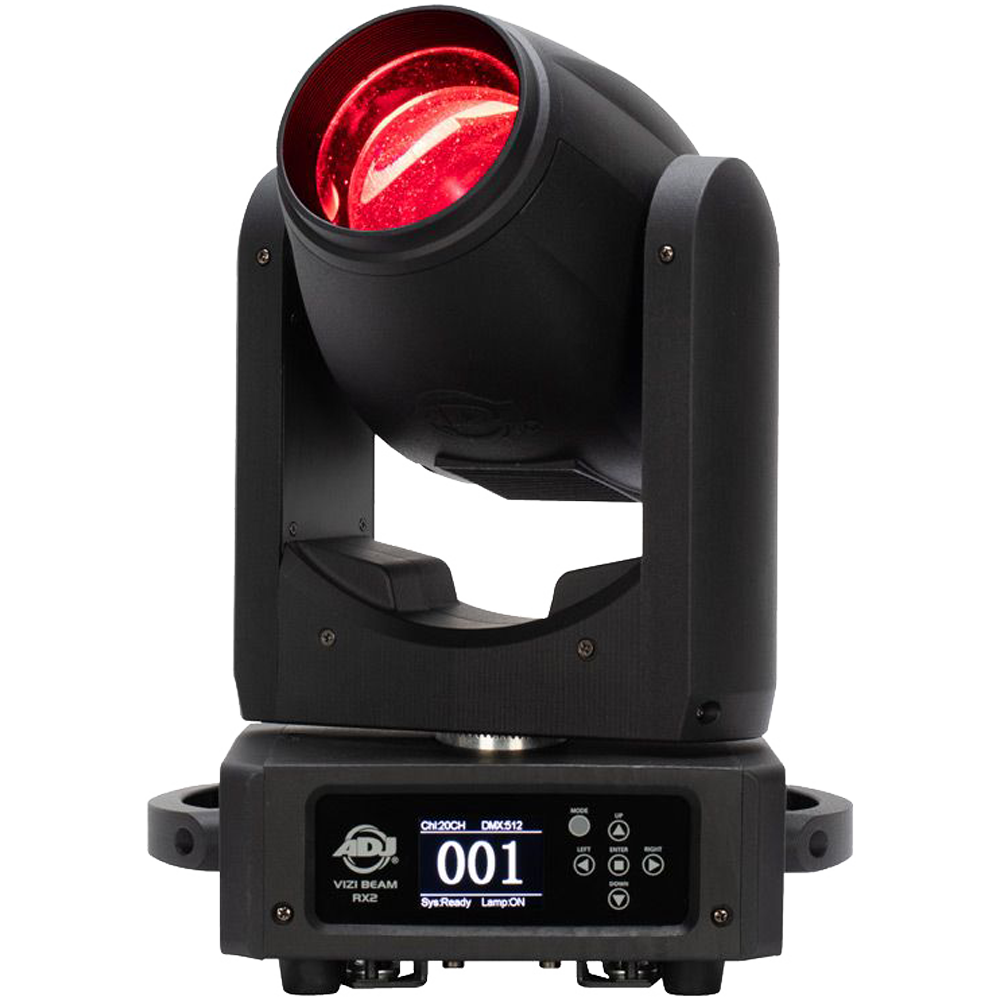

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance. Vizi Beam RX2 is designed for live events and venues looking for a small footprint lighting fixture that creates a high-impact lightshow.

Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (4500K & 9000K) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).

The fixture boasts advanced features, including 2 rotating prisms (16-facet circular & 6-facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability during transportation and rigging. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a color LCD display with a 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.

FEATURES

• On-Board Wireless DMX
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms
• 0-100% smooth dimming
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled

SPECIFICATIONS

Light Source:
• OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
• Color temperature: 9000K (+/- 300K)

Color Wheel:
• 14 dichroic colors + white (Includes CTO (3200K), CTB (4500K & 9000K) & UV filters)
• Indexable color wheel for split colors

GOBO Wheel:
• 15 static GOBOs + open (3 GOBOs are beam reducers)
• GOBO Shake Effect

Prism Wheels:
• 2 Rotating prisms
• 16- facet circular and 4-facet linear prisms

Control:
• Protocols: DMX512 & RDM
• Control Mode: DMX512 & Manual (On-board Controls)
• 2 DMX Channel Modes: 12/16 Channels
• Aria X2 Wireless Management / DMX System
• Color LCD display with 4-button function menu
• 0-100% smooth dimming
• Various strobe speeds
• With Wired Digital Communication Network

Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)
• 3-phase, High Speed, Pan/Tilt motors

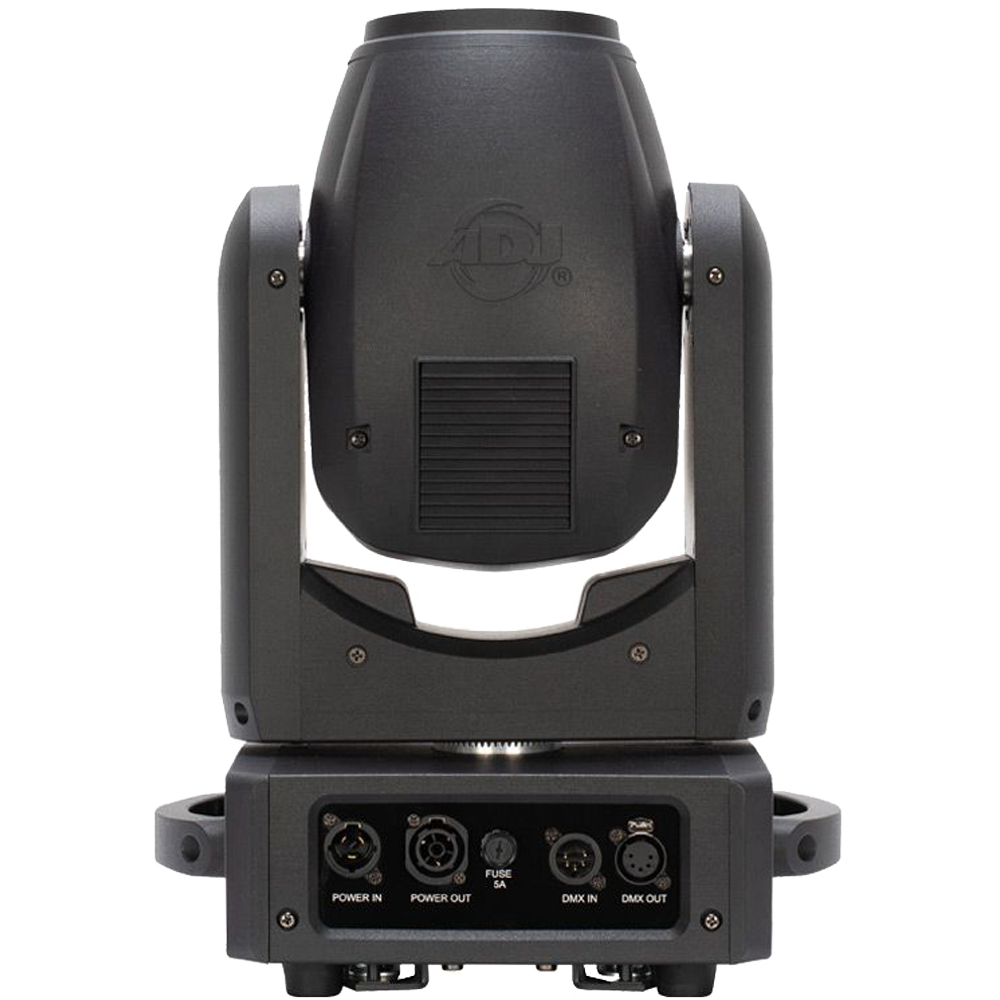

Connections:
• DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 168W (@120V), 157W (@230V)
• Fuze Protected: 3.15A

Dimensions & Weight:
• Dimension: 9” (L) x 12” (W) x 16.3” (H) (230 x 304 x 416 mm)
• Weight: 16.5 lbs. / 7.5 kg.

Approvals / Ratings:
• CE
• cETLus (Control # 5028947)
• FCC

CONTENTS

(1) ADJ Vizi Beam RX2
(2) Omega Brackets
(1) 2M, Outdoor Locking 14AWG Power Cord
