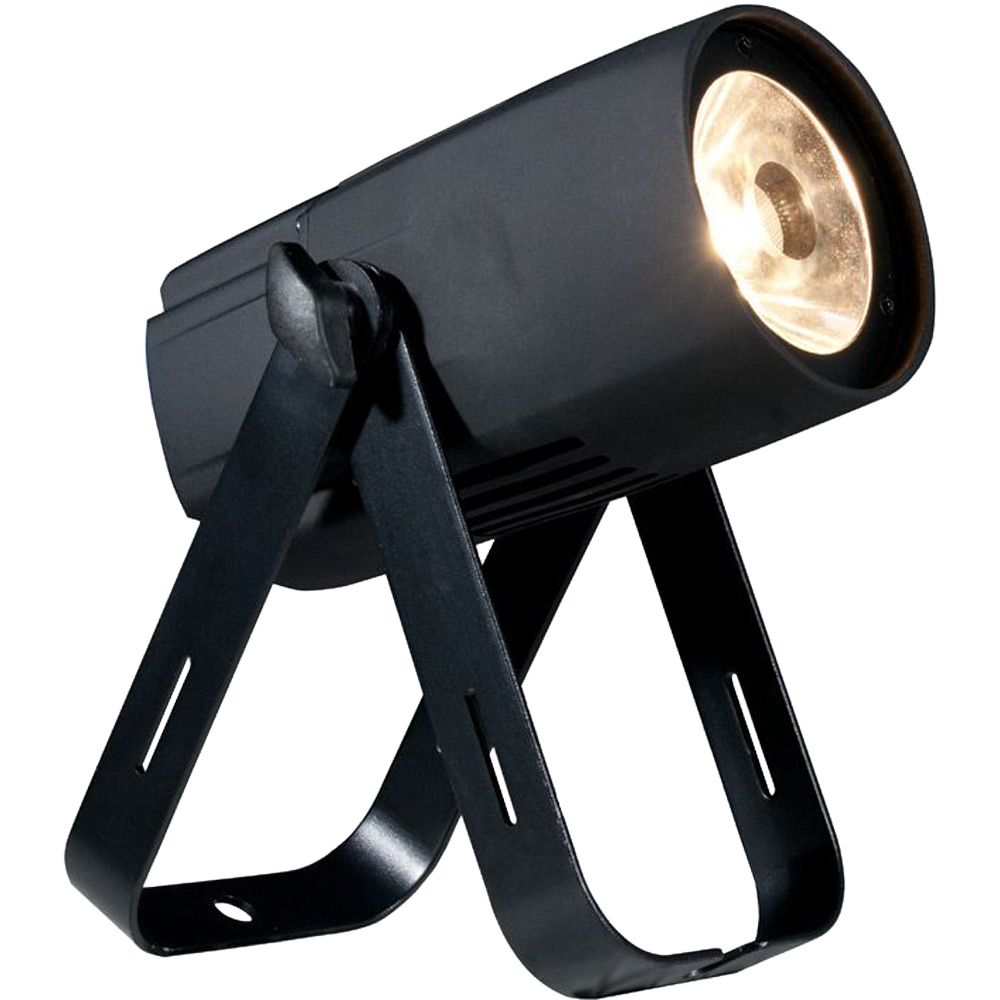

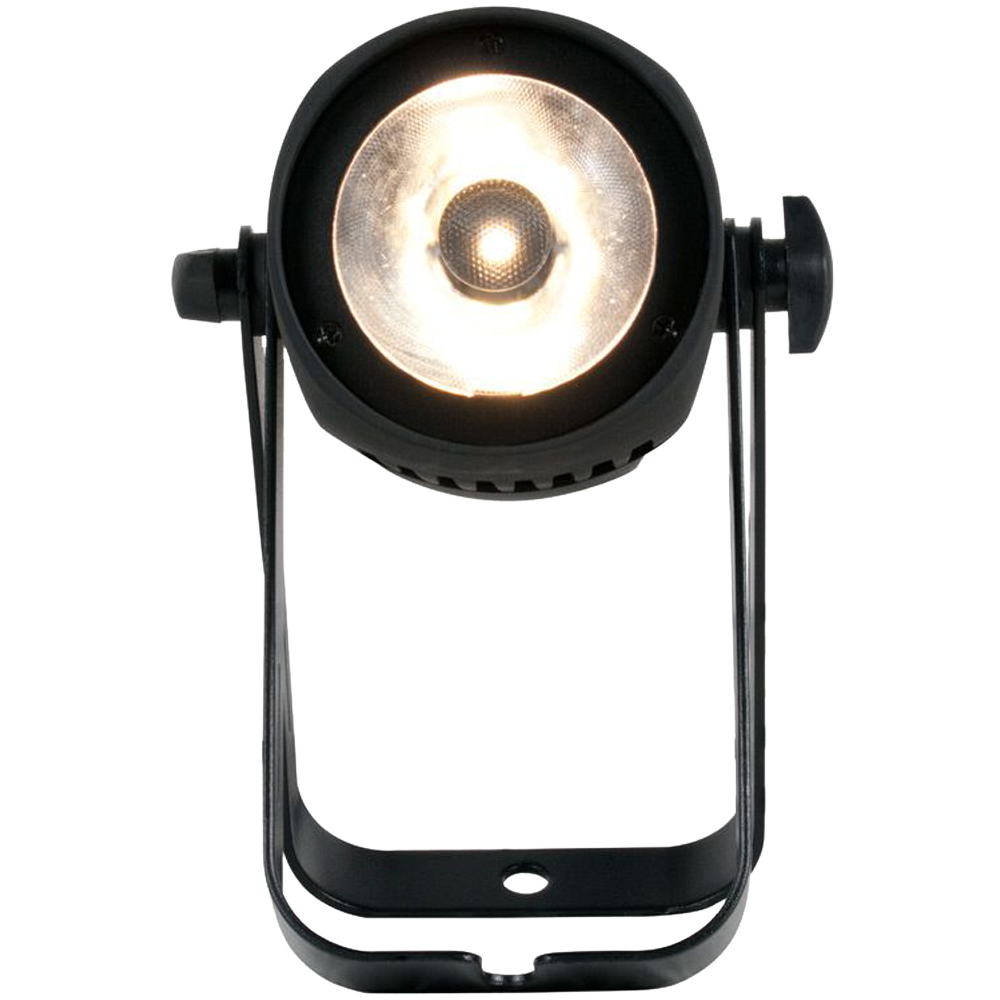

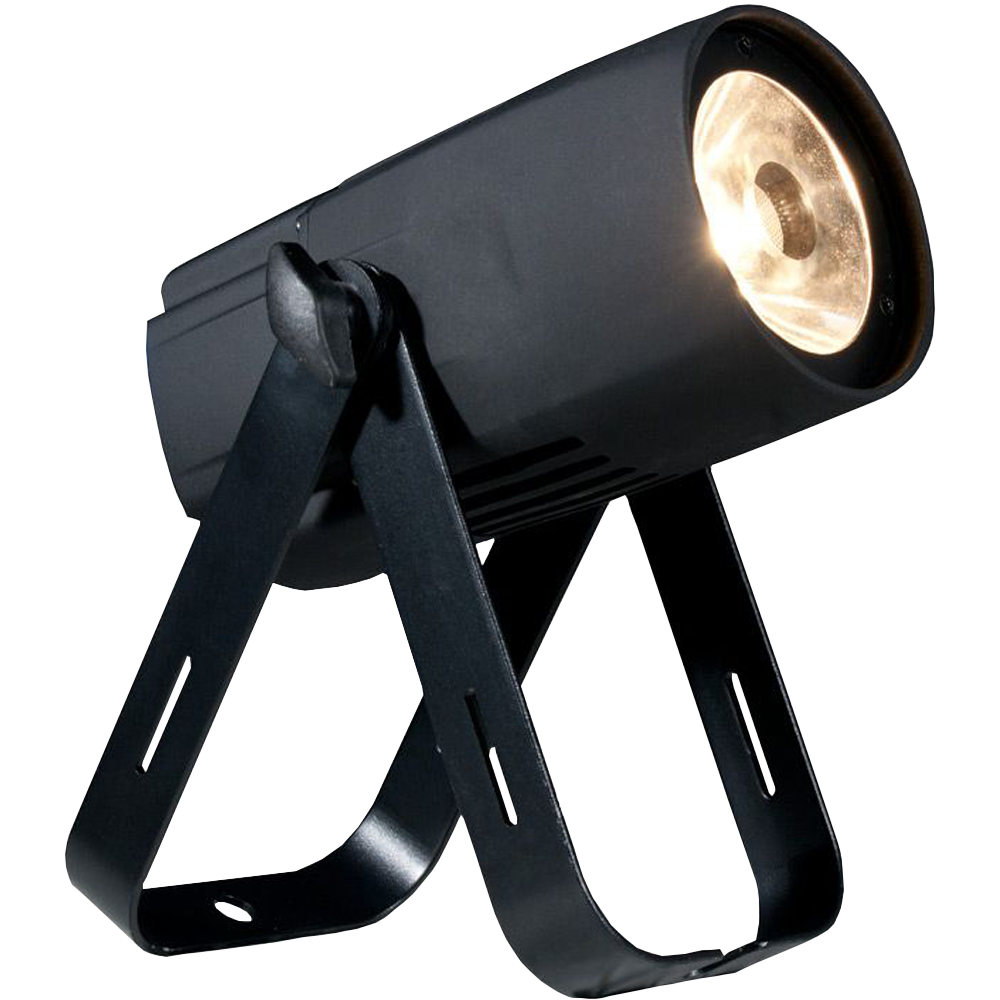

The Saber Spot WW is a compact pinspot with a 15-watt warm white LED. Features DMX-512, flicker-free operation, strobing, and electronic dimming, and has a 4-button DMX display system on the rear panel. Its built-in ACL lens produces a razor-sharp 4-degree beam angle.

The Saber Spot WW has a scissor bracket system that allows the fixture to be hung or set on the ground and is ideal for performance stages, installations, table spotting, and lighting retail stores.

FEATURES

• DMX-512 Protocol Compatible (3 DMX Channel Modes: 1/2/4
• 3 Operating Modes - Show Mode, WW Dimmer Mode & DMX Control
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• Digital Display for Address and Function Setting
• UC IR Compatible (Not Included) & Airstream App Compatible
• Power Cord Daisy Chainable

SPECIFICATIONS

Optical:
• Light Source: 15-Watt Warm White LED
• LED Life Expectancy: 10,000 Hrs
• Beam Angle: 4-degrees
• Includes 2 interchangeable frost filter lens (10- degree & 45-degree)
• Refresh Rate: 3.6KHz

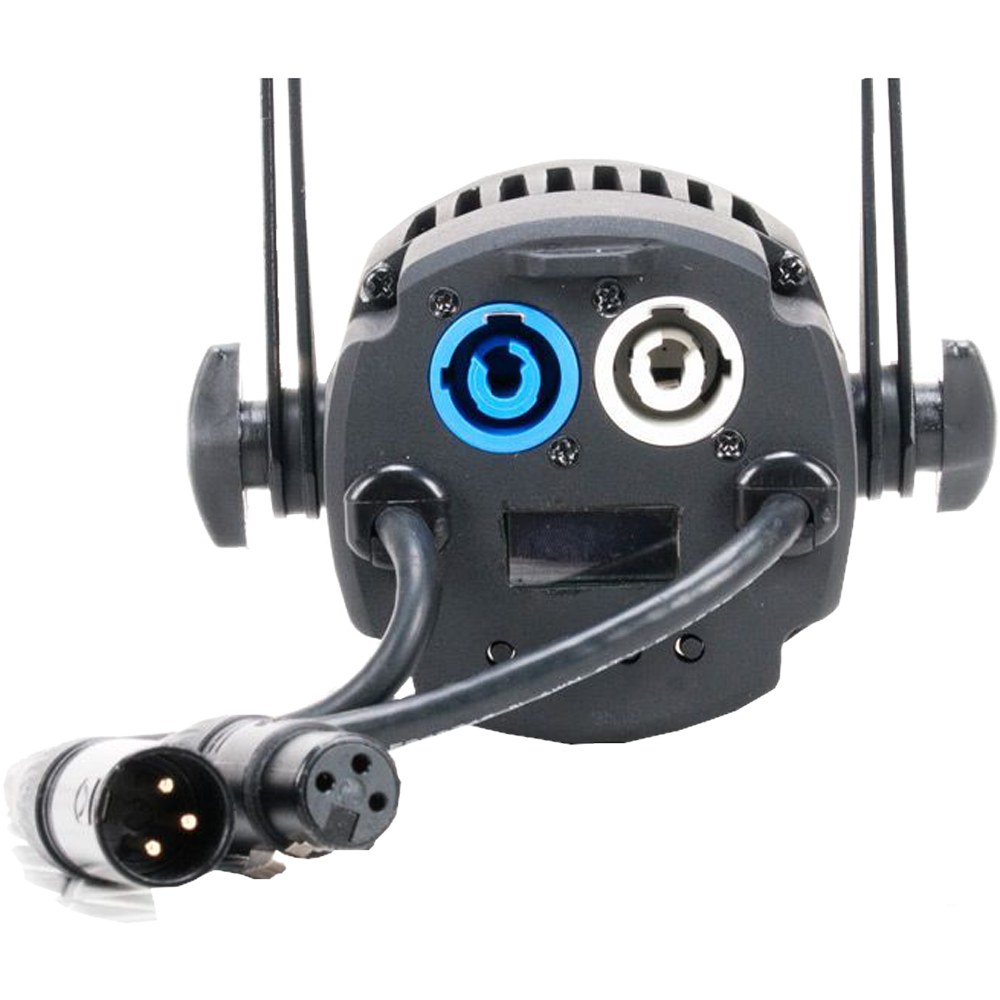

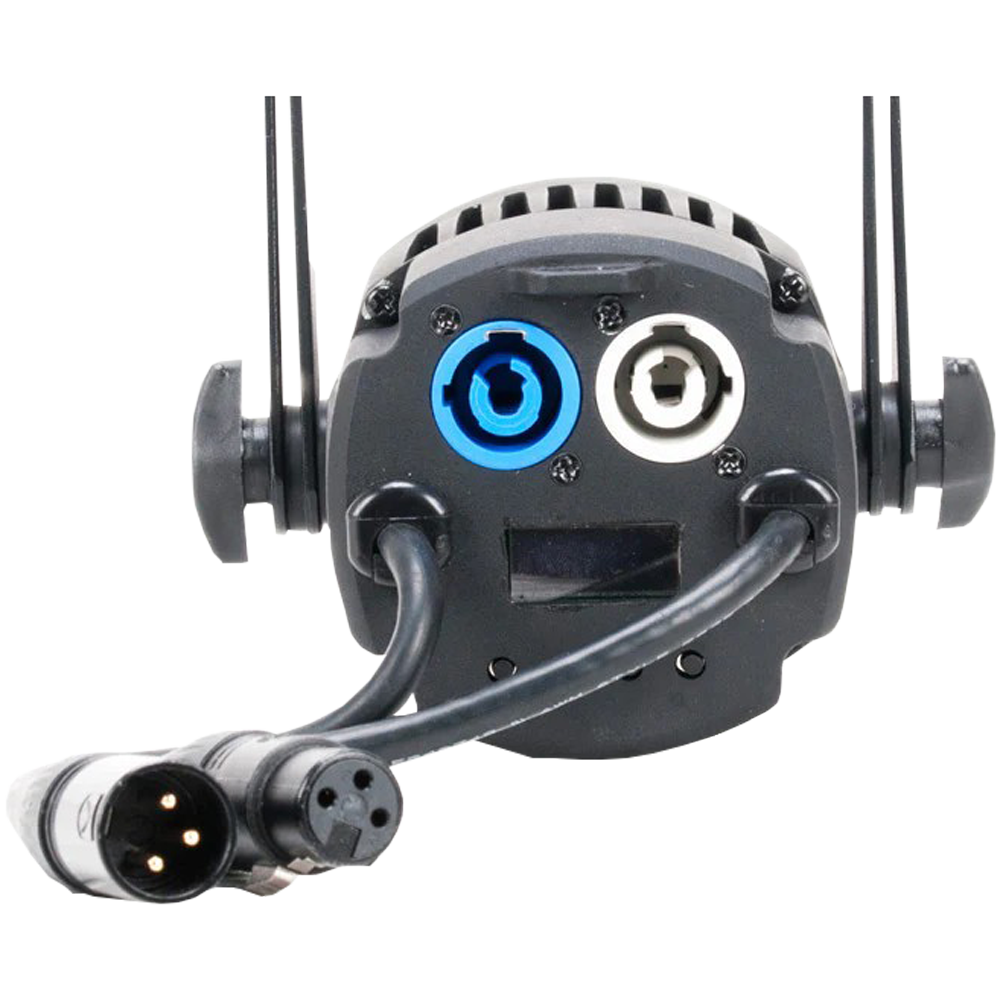

Connections:
• Power Input: locking connection
• Power Pass through: locking connection
• Control: 3 Pin DMX In/Out pigtails
• With Wired Digital Communication Network

Control:
• 2 DMX Channel Modes: 1 or 2
• RDM (Remote Device Management)

Electrical:
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 15W, 0.13 Amps
• Power draw 220V 50Hz: 15W, 0.07 Amps

Physical:
• Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87 mm
• Weight: 2.6 lbs / 1.2 kg.
• Metal Black Housing

Certifications:
• ETL Approved, UL, CE
• IP 20: Dry area, No liquids

Optional Accessories:
• PLC 3, PLC 6, PLC 10 (powerCON passthrough cables)

CONTENTS

(1) ADJ Saber Spot WW
(1) Locking Power Cord
(1) O-Ring for Frost Filter Lens
(1) 10-Degree Frost Filter Lens
(1) 45-Degree Frost Filter Lens
(1) Manual
