Product SKU
    Product SKU #25153
$11,499.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Mint Condition
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTIONS

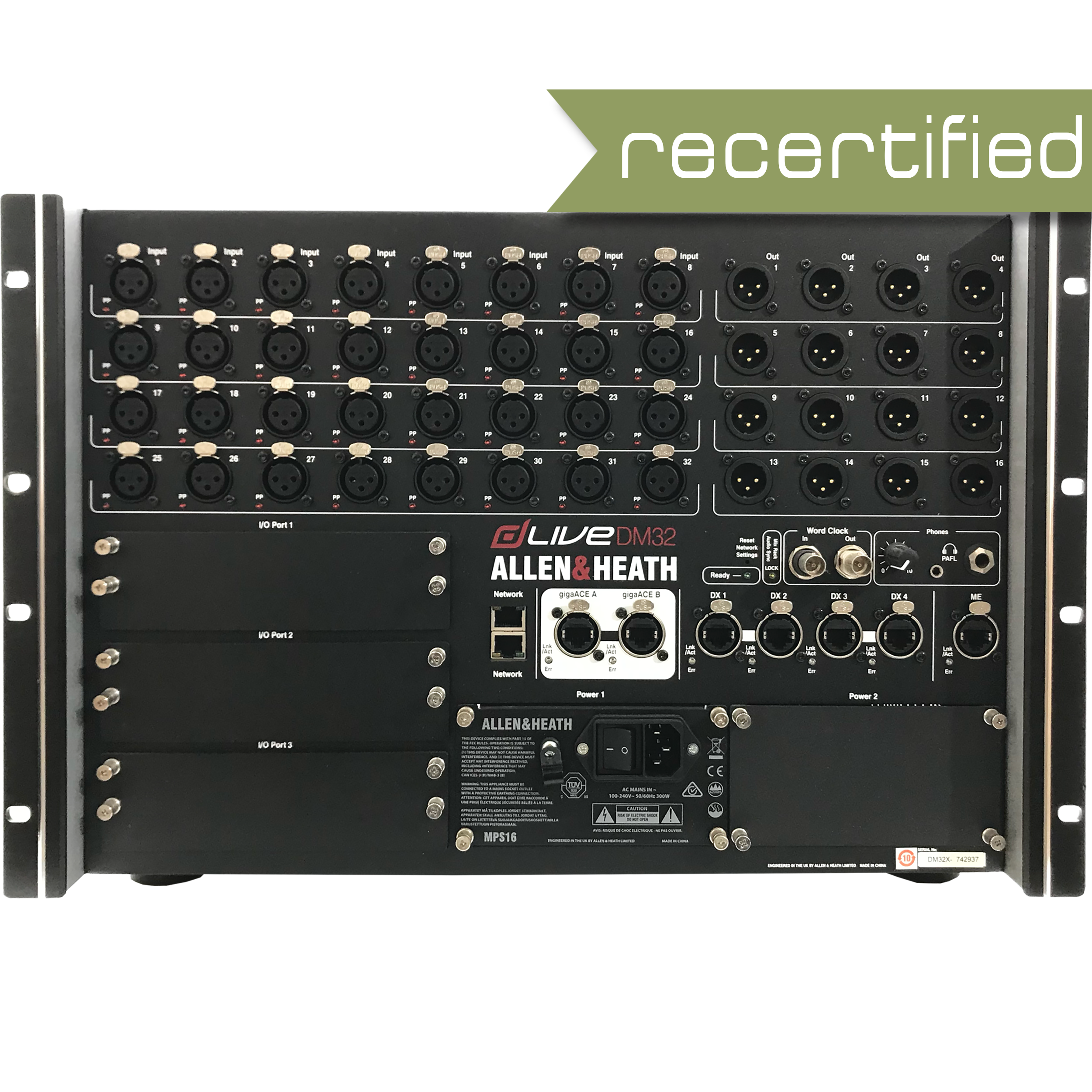

The USED Allen & Heath dLive DM32 Audio Mixing Rack is a high-performance digital mixer designed for professional live sound applications. This robust unit features a powerful 96kHz FPGA processing core, ensuring pristine audio quality and ultra-low latency. Equipped with 32 input channels and 16 output channels, it offers extensive connectivity and flexible routing options. The dLive DM32 also boasts advanced processing capabilities, including EQ, dynamics, and FX, making it ideal for complex sound reinforcement scenarios. With its rugged construction and intuitive user interface, this used model provides reliable performance for touring, installations, and other demanding environments.
FEATURES
    • 32 mic/line inputs, 16 line outputs
    • XCVI 160x64 FPGA core
    • 128 Input Channels with full processing
    • 64 Mix Outputs with full processing
    • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
    • 16 RackExtra FX with dedicated stereo returns
    • Automatic Mic Mixer (AMM) up to 4 zones, 64 ch
    • DEEP processing – powerful embedded plugins including GEQ and compressor modelling
    • 24 DCAs
    • Built-in signal generator, RTA and spectrogram
    • New preamp design for extra transparency
    • Unique Active PAD circuit for consistent performance with any source
    • Connection hub
    • Dual redundant, hot swappable power supply
    • Flush front panel with ultra quiet fan
    • Reversible rack ears design
SPECIFICATIONS
    Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    Mic/Line Preamp: Fully recallable
    Input Sensitivity: -60 to +15dBu
    Analogue Gain: +5 to +60dB, 1dB steps
    Pad: -20dB Active PAD
    Maximum Input Level: +30dBu (PAD in)
    Input Impedance: >4kO (Pad out), >10kO (Pad in)
    Mic EIN: -127dB with 150 source
    Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V
    Analogue XLR Outputs: Balanced, Relay protected
    Output Impedance: <75O
    Nominal Output: +4dBu = 0dB meter reading
    Maximum Output Level: +22dBu
    Residual Output Noise: -92dBu (muted, 20-20kHz)
    Dynamic Range: 110dB
    System Signal to Noise: -92dB
    Frequency Response: 20Hz - 30kHz +0/-0.8dB
    THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    Headroom: +18dB
    Internal Operating Level: 0dBu
    dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output
    Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    Meter Peak Indication: -3dBFS (+19dBu at XLR out)
    Sampling Rate: 96kHz +/- 20 PPM
    ADC and DAC: 24-bit Delta-Sigma
    Dimensions (LxWxH): 19" x 12.3" x 12.8"
    Weight: 33 lbs
    Power: 100-240V AC, 50-60Hz, 175W max
CONTENTS
    (1) Allen & Heath dLive DM32 RackUltra FX
    (1) Getting Started Guide
    (1) Safety Sheet
    (1) IEC mains lead
