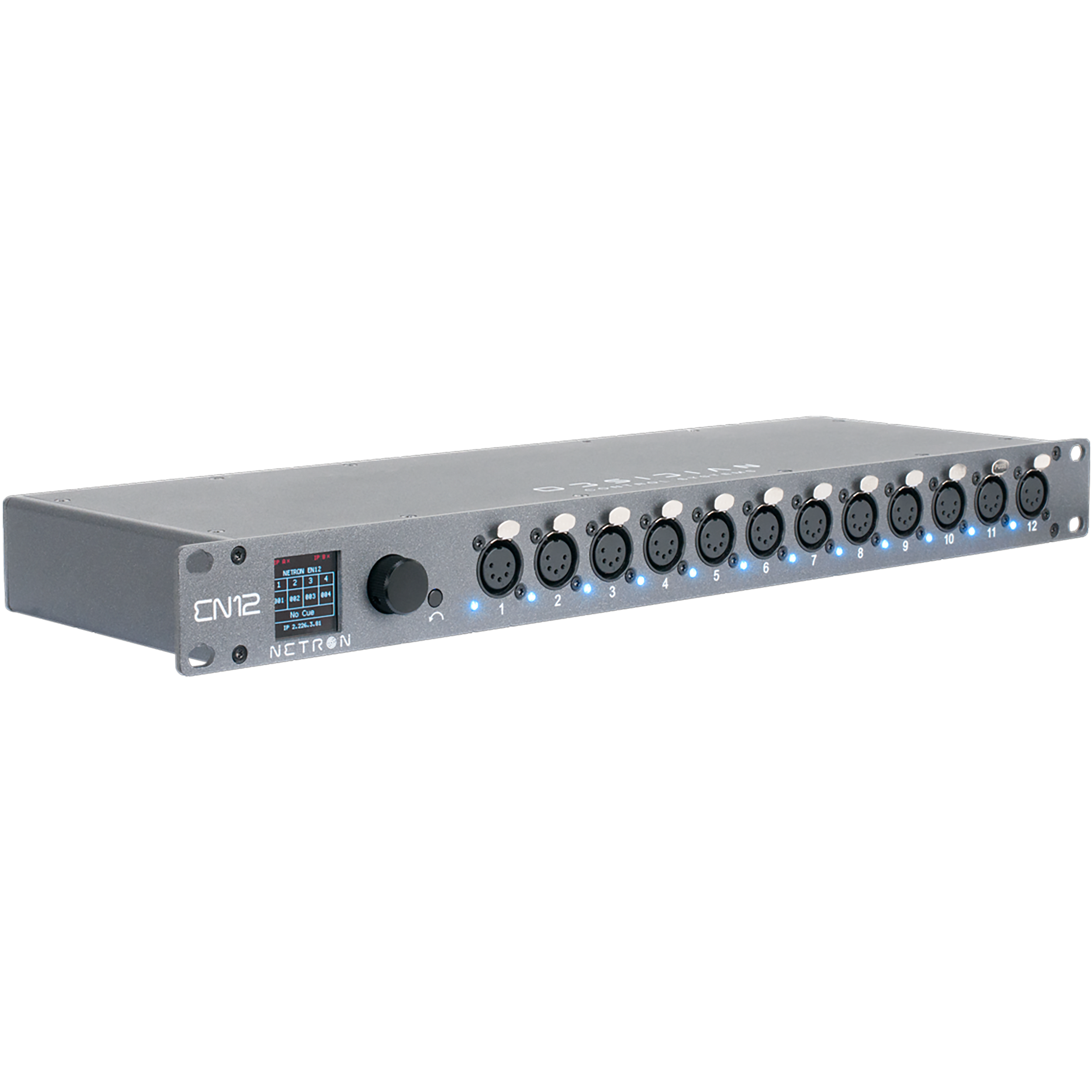

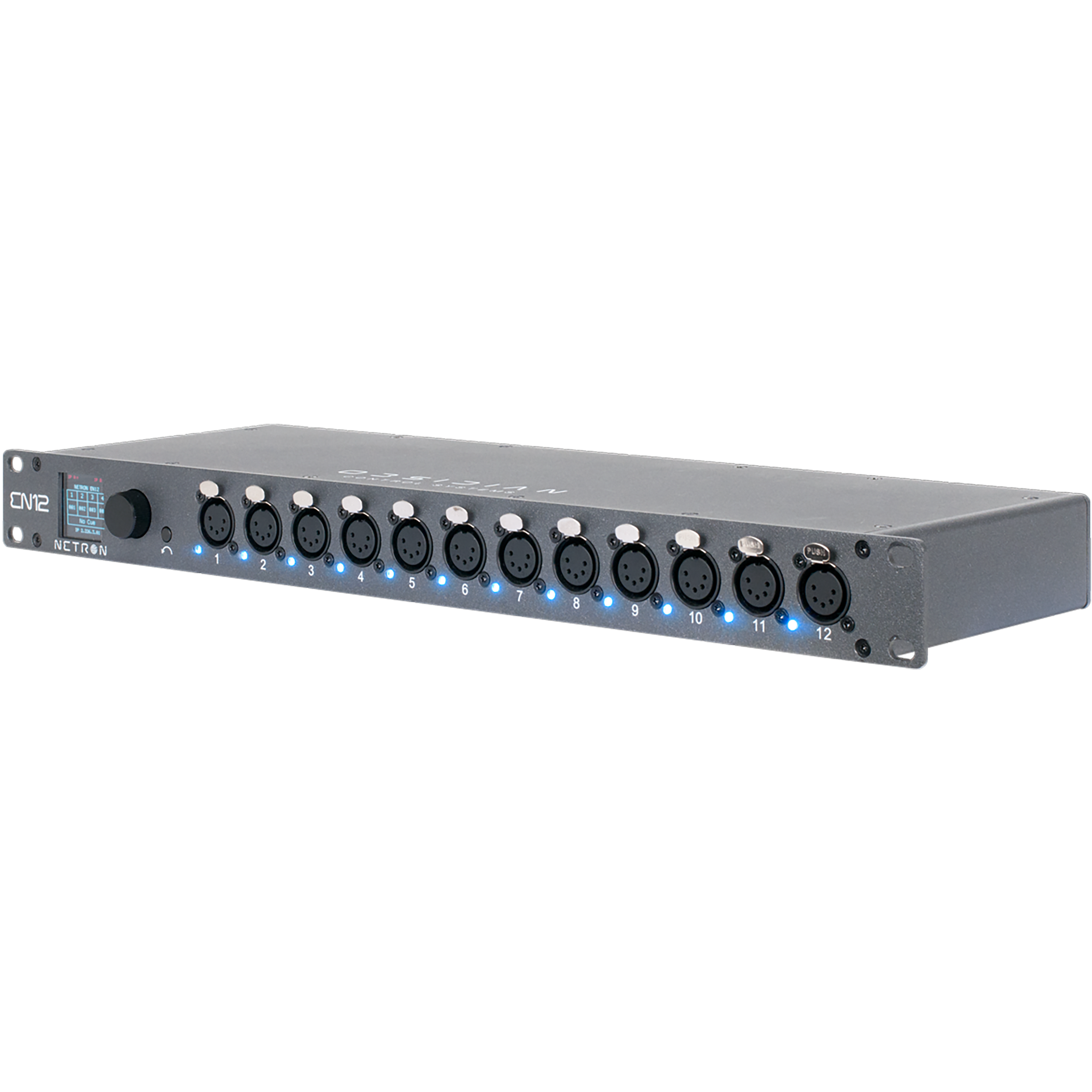

The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Customizable routing and merging options
- Remote configuration via internal webpage
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
- Unlocks ONYX NOVA 4 Universe License
| Product Dimension (L x W x D) |
19" x 5.7" x 1.7" |
| Product Weight |
4 lbs |
| Power Input |
100-240 V nominal, 50/60 Hz |
| Internal fuse |
POE 802.3af |
| Power Consumption |
9W |
| Approval/Ratings |
cETLus / CE / IP20 |
| :CONNECTIONS |
|
| Front |

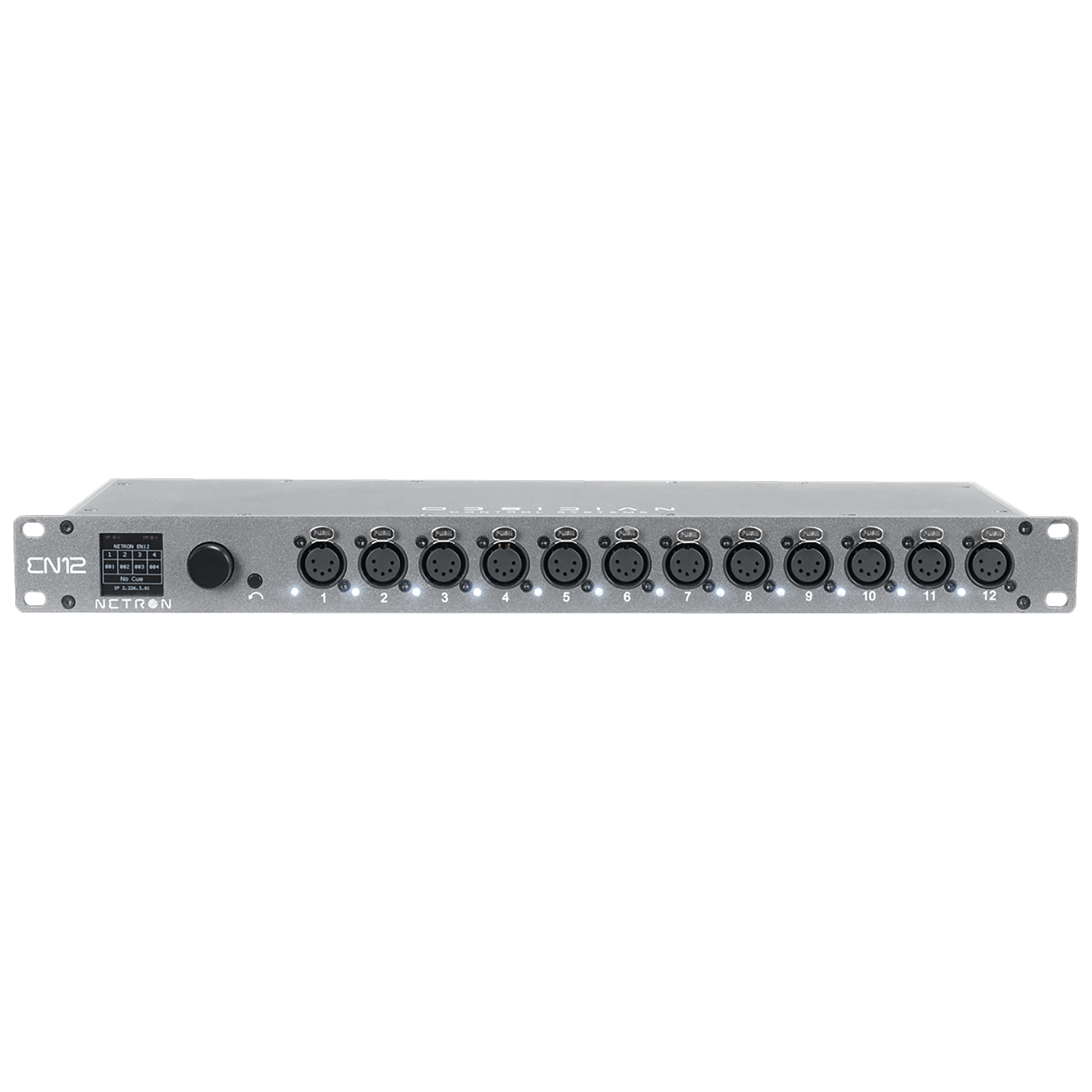

(12) 5pin DMX/RDM optically isolated ports. Ports are bidirectional for DMX In and Output. Full color OLED display. Encoder w. Push to Select / Exit Button. |
| Back |

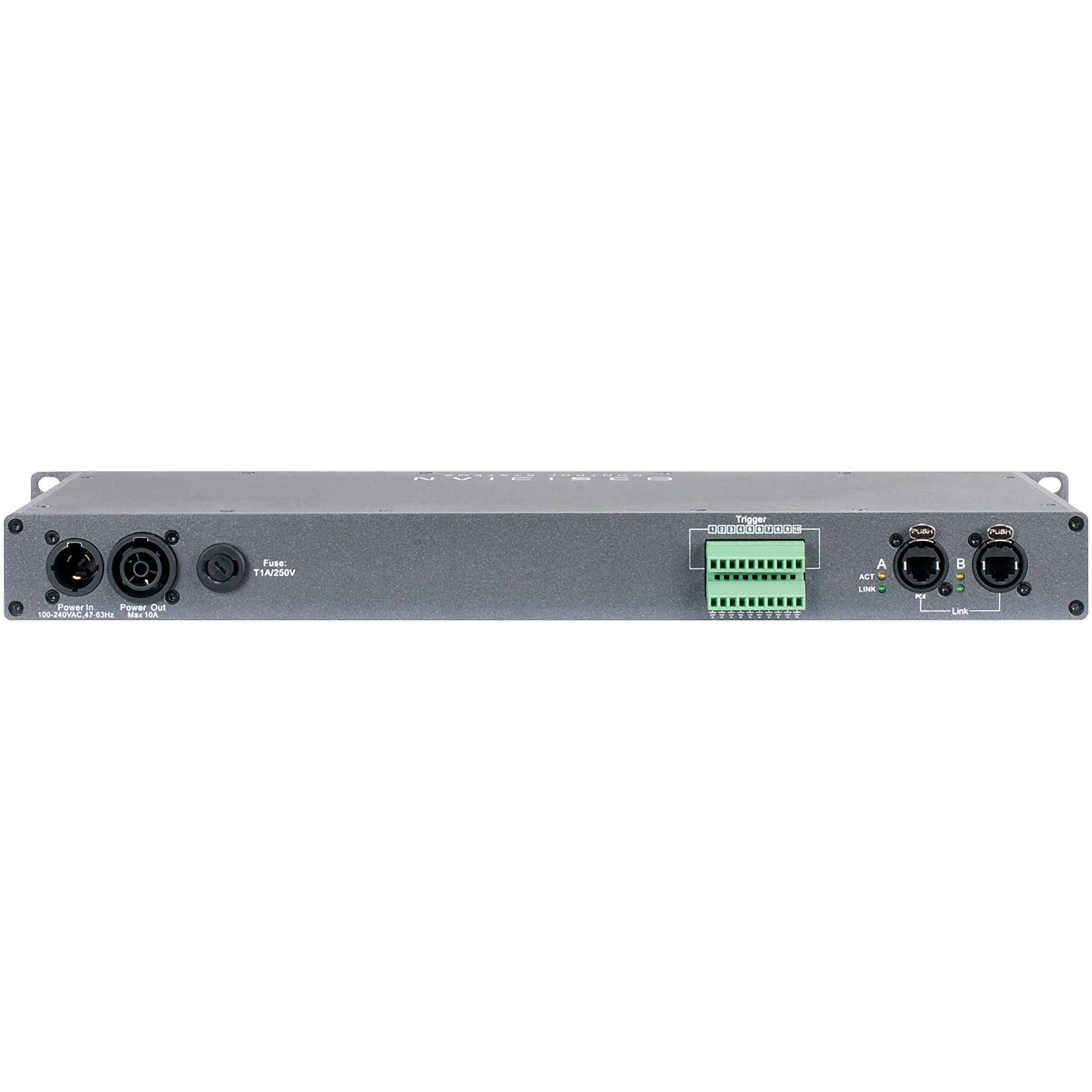

(2) Locking RJ45 Ethernet network In. (10) Contact Closures (Terminal Block). Locking Power In/Thru |
| Mounting |
Rackmount |
(1) Obsidian Netron EN12 Ethernet to DMX Gateway
